Same model may have multiple batches, images only for reference.

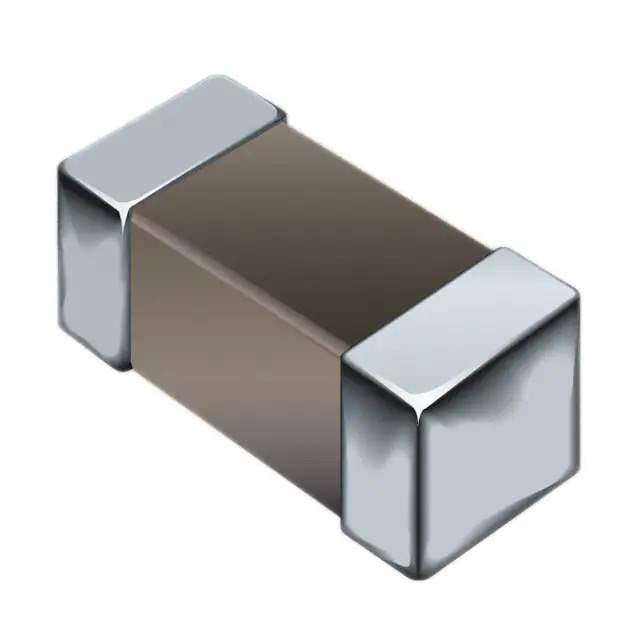

CS160808-LAB1 Real Image
Same model may have multiple batches, images only for reference.

CS160808-LAB1

Part No CS160808-LAB1
Manufacturer Bourns Inc.
Catalog Misc Products
Description KIT INDUCTOR CHIP SMD
Datasheet
CS160808-LAB1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Kits - Inductor Kits
Mfr Bourns Inc.
Series CS160808
Package Case
Product Status Obsolete
Kit Type Fixed
Style Multilayer
Material - Core Ferrite
Quantity 720 Pieces (18 Values - 40 Each)
Inductance Range 47nH ~ 2.2µH
Mounting Type Surface Mount
Packages Included 0603 (1608 Metric)
Base Product Number CS160808
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 916040-CS160808-LAB1
Ultra Librarian 3D Model Ultra Librarian CS160808-LAB1 CAD Model

Description

The 916040-CS160808-LAB1 is an inductor kit from the CS160808 series. It is designed for surface mount applications and comes in a case package.

  • Series: CS160808
  • Application: Surface Mount
  • Packaging: Case
  • Quantity per Package: 1 Piece
  • Core Material: Ferrite
  • Style: Multilayer
  • Mounting Type: Surface Mount
  • Status: Obsolete
  • Quantity Included: 720 pieces
  • Values: 18 different values
  • Pieces per Value: 40 pieces each
  • Inductance Range: 47nH to 2.2µH
  • Manufacturer: Bourns Inc.
