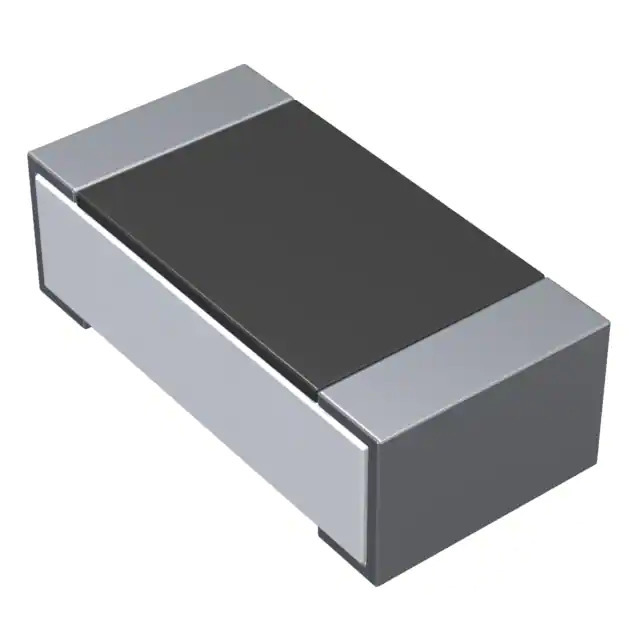

CR0603-FX-20R0ELF Bourns Inc.
Same model may have multiple batches, images only for reference.

CR0603-FX-20R0ELF

Part No CR0603-FX-20R0ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 20 OHM 1% 1/10W 0603
Datasheet
CR0603-FX-20R0ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CR0603
Package Tape & Reel
Product Status Active
Resistance 20 Ohms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Failure Rate -
Base Product Number CR0603
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1373771-CR0603-FX-20R0ELF
Ultra Librarian 3D Model Ultra Librarian CR0603-FX-20R0ELF CAD Model

Description

The Bourns Inc. CR0603-FX-20R0ELF is a chip resistor designed for surface mount applications.

  • Resistance: 20 Ohms
  • Power Rating: 0.1W
  • Series: CR0603
  • Package: 0603
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Moisture Resistant: Yes
  • Height: 0.022" (0.55mm)
  • Temperature Range: -55°C to 155°C
  • Packaging: Tape and Reel
  • REACH: Unaffected
  • ECCN: EAR99
