Same model may have multiple batches, images only for reference.

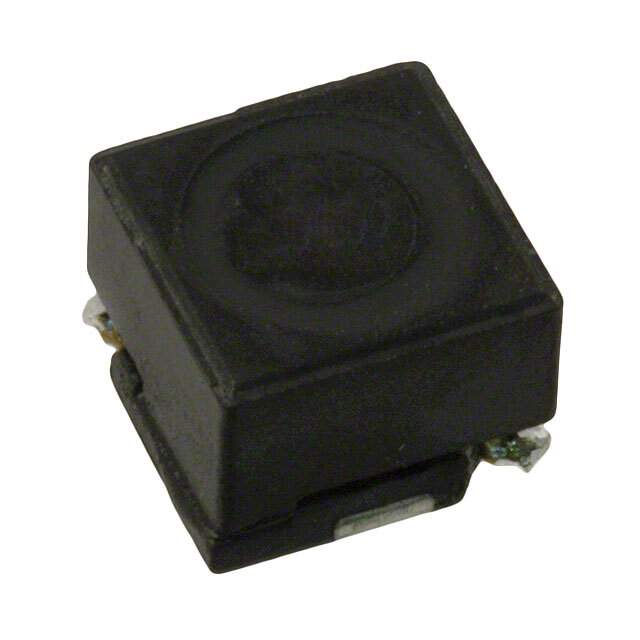

SRR0604-221KL Real Image
Same model may have multiple batches, images only for reference.

SRR0604-221KL

Part No SRR0604-221KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 250MA 1.7OHM SMD / 220 µH Shielded Drum Core, Wirewound Inductor 250 mA 1.7Ohm Max Nonstandard, Corner Terminals
Datasheet
SRR0604-221KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±10%
Current Rating (Amps) 250 mA
Current - Saturation (Isat) 320mA
Shielding Shielded
DC Resistance (DCR) 1.7Ohm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard, Corner Terminals
Size / Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR0604
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRR0604-221KLCT,-SRR0604-221KLCT,SRR0604-221KLTR,-SRR0604-221KLTR,SRR0604221KL,-SRR0604-221KL
Standard Package 1,000
Win Source Part Number 1328416-SRR0604-221KL
Ultra Librarian 3D Model Ultra Librarian SRR0604-221KL CAD Model

Description

The SRR0604-221KL is a fixed inductor manufactured by Bourns Inc.

  • Inductance: 220 µH
  • Q @ Frequency: 20 @ 796kHz
  • Current Rating: 250 mA
  • Core Type: Drum Core
  • Design: Wirewound
  • Shielded: Yes
