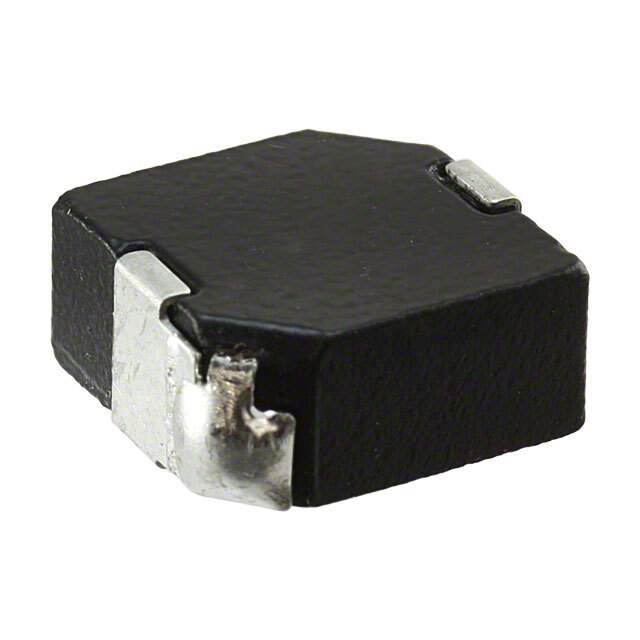

SRP1270-1R0M Real Image
Same model may have multiple batches, images only for reference.

SRP1270-1R0M

Part No SRP1270-1R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1270-1R0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1270
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 32 A
Current - Saturation (Isat) 50A
Shielding Shielded
DC Resistance (DCR) 2.1mOhm Max
Frequency - Self Resonant 45MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.539" L x 0.539" W (13.70mm x 13.70mm)
Height - Seated (Max) 0.276" (7.00mm)
Base Product Number SRP1270
Other Names SRP1270-1R0M,SRP1270-1R0MTR,SRP1270-1R0MDKR,SRP1270-1R0MCT,SRP12701R0M
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274025-SRP1270-1R0M
Ultra Librarian 3D Model Ultra Librarian SRP1270-1R0M CAD Model

Description

The Bourns Inc. 1274025-SRP1270-1R0M is a drum core, wirewound type fixed inductor that comes in a tape & reel package.

  • Inductance: 1 µH (Maximum)
  • DC Resistance: 2.1mOhm (Maximum)
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 125°C
