Same model may have multiple batches, images only for reference.

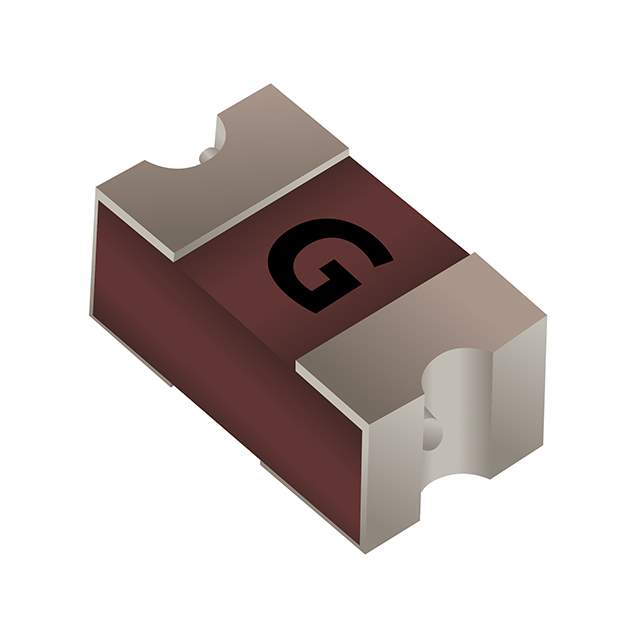

SF-1210S150W-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1210S150W-2

Part No SF-1210S150W-2
Manufacturer Bourns Inc.
Catalog Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1210SxxxW
Package Tape & Reel
Product Status Obsolete
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 65 V
Response Time Slow Blow
Package / Case 1210 (3225 Metric), Concave
Breaking Capacity @ Rated Voltage 100A
Melting I2t 0.5
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.098" W x 0.063" H (3.20mm x 2.50mm x 1.60mm)
DC Cold Resistance 0.05 Ohms
Base Product Number SF-1210
Other Names SF-1210S150W-2TR,SF-1210S150W-2DKR,SF-1210S150W-2CT
Standard Package 2,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302029-SF-1210S150W-2
Ultra Librarian 3D Model Ultra Librarian SF-1210S150W-2 CAD Model

Description

The SinglFuse™ SF-1210SxxxW series circuit protection fuse is designed to protect electronic components from overcurrent and short circuit conditions. This board mount fuse has a voltage rating of 125V AC and 65V DC, and a breaking capacity of 100A @ rated voltage.

  • Voltage Rating: 125V AC and 65V DC
  • Breaking Capacity: 100A @ rated voltage
  • Response Time: Slow blow
  • Melting I2t: 0.5
  • DC Cold Resistance: 0.05 Ohms
  • Package: Tape and reel
  • Mounting: SMD (SMT) mounted
  • Package/Case: Concave 1210 (3225 Metric)
  • Operating Temperature Range: -55°C to 125°C
  • Dimension: 0.126" L x 0.098" W x 0.063" H (3.20mm x 2.50mm x 1.60mm)
  • Status: Obsolete
  • Manufacturer: Bourns Inc.
