Same model may have multiple batches, images only for reference.

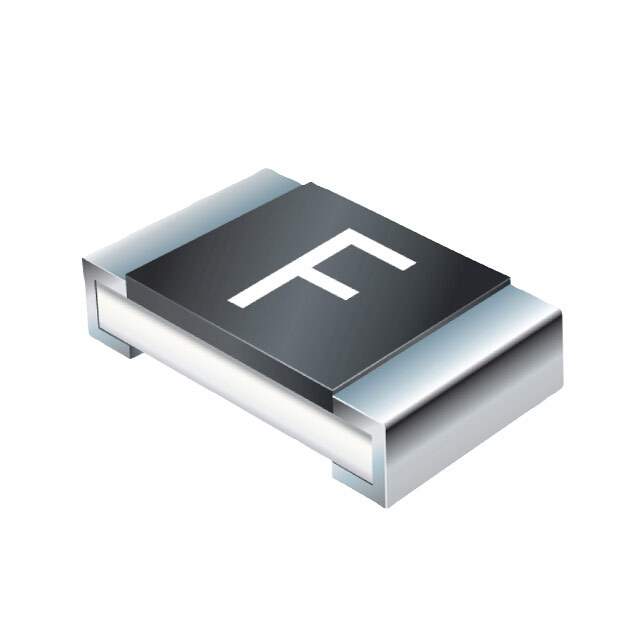

SF-1206SP080-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206SP080-2

Part No SF-1206SP080-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206SP080-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SP
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 800 mA
Voltage Rating - DC 63 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.072
Approval Agency UL
Temperature Range - Operating -20°C ~ 105°C
Dimension 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm)
Base Product Number SF-1206
Other Names SF-1206SP080-2TR,SF-1206SP080-2DKR,SF-1206SP080-2CT
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302058-SF-1206SP080-2
Ultra Librarian 3D Model Ultra Librarian SF-1206SP080-2 CAD Model

Description

The SinglFuse™ SF-1206SP is a board mount (cartridge style excluded) slow blow fuse, designed to protect electronic circuits from overcurrent.

  • Voltage Rating: 63V
  • Breaking Capacity: 50A
  • Packaging: Tape and Reel
  • Standard Package: 5,000
  • Melting I2t: 0.072
  • Current Rating: 800mA
  • Dimension: 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm)
  • Temperature Range: -20°C to 105°C
  • Other Names: SF-1206SP080-2TR, SF-1206SP080-2DKR, and SF-1206SP080-2CT
  • Manufacturer: Bourns Inc.
  • Approval Agency: UL
