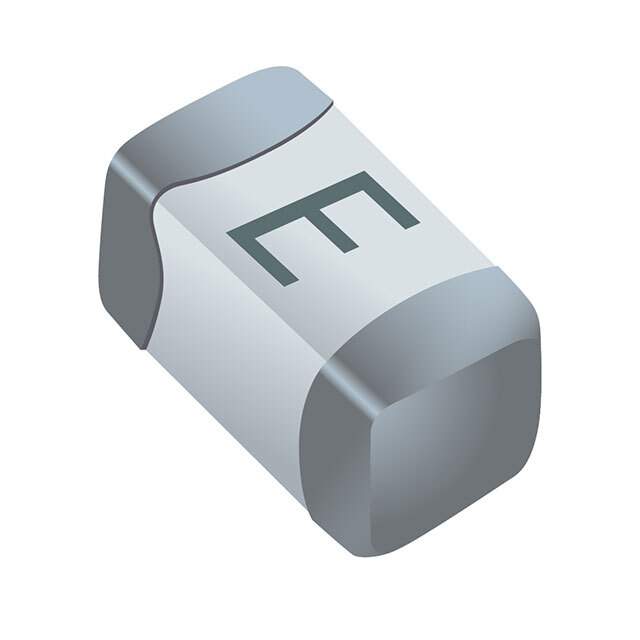

SF-0603HI450M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603HI450M-2

Part No SF-0603HI450M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603HI450M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603HIxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4.5 A
Voltage Rating - DC 32 V
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 2.63
Approval Agency UL
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.063" L x 0.031" W x 0.031" H (1.60mm x 0.80mm x 0.80mm)
DC Cold Resistance 0.014 Ohms
Base Product Number SF-0603
Other Names ,SF-0603HI450M-2TR,SF-0603HI450M-2DKR,118-SF-0603HI450M-2DKR,SF-0603HI450M-2CT,118-SF-0603HI450M-2TR,SF-0603HI450M-2TR,SF-0603HI450M-2CT,SF-0603HI450M-2DKR,118-SF-0603HI450M-2CT
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302130-SF-0603HI450M-2
Ultra Librarian 3D Model Ultra Librarian SF-0603HI450M-2 CAD Model

Description

The SinglFuse™ SF-0603HIxxxM series is a board mount (cartridge style excluded) electronic component used for circuit protection.

  • Manufacturer: Bourns Inc.
  • Voltage Rating: 32V
  • Current Rating: 4.5A
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 2.63
  • DC Cold Resistance: 0.014 Ohms
  • Operating Temperature Range: -55°C to 150°C
  • Package: tape & reel
  • Mounting: SMD (SMT) technology
  • Dimension: 0.063" L x 0.031" W x 0.031" H (1.60mm x 0.80mm x 0.80mm)
  • ECCN: EAR99 compliant
