Same model may have multiple batches, images only for reference.

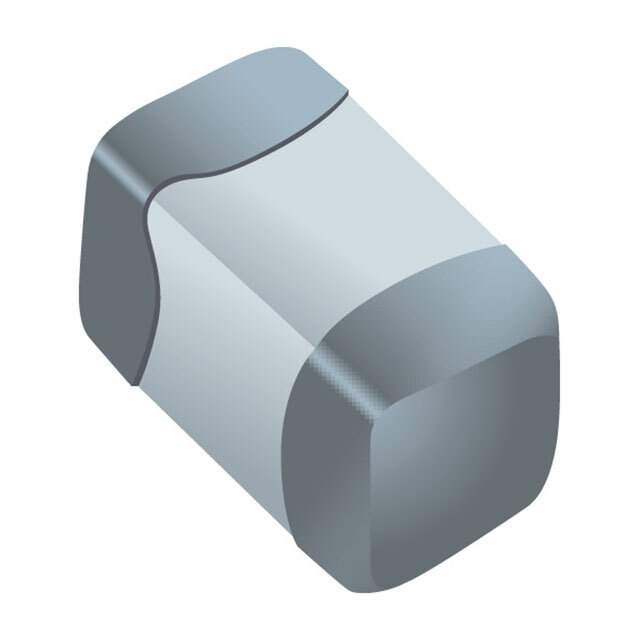

SF-0402S400M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402S400M-2

Part No SF-0402S400M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402S400M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402SxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4 A
Voltage Rating - DC 24 V
Response Time Slow Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.21
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.039" L x 0.020" W x 0.020" H (1.00mm x 0.51mm x 0.51mm)
DC Cold Resistance 0.014 Ohms
Base Product Number SF-0402
Other Names SF-0402S400M-2TR,SF-0402S400M-2CT,SF-0402S400M-2DKR
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302171-SF-0402S400M-2
Ultra Librarian 3D Model Ultra Librarian SF-0402S400M-2 CAD Model

Description

The SinglFuse SF-0402SxxxM series by Bourns Inc. is an efficient circuit protection solution for your electronic devices.

  • Fuse Type: Board Mount Fuse
  • Response Time: Slow Blow
  • Voltage Rating: 24 V
  • Breaking Capacity: 35A
  • DC Cold Resistance: 0.014 Ohms
  • Fuse Type: Cartridge Style Excluded
  • Package: Tape and Reel
  • Mounting Style: SMD (SMT)
  • Package/Case: 0402 (1005 Metric)
  • Temperature Range: -55°C ~ 125°C
  • Dimension: 0.039" L x 0.020" W x 0.020" H (1.00mm x 0.51mm x 0.51mm)
  • ECCN: EAR99
  • REACH: Unaffected by REACH
