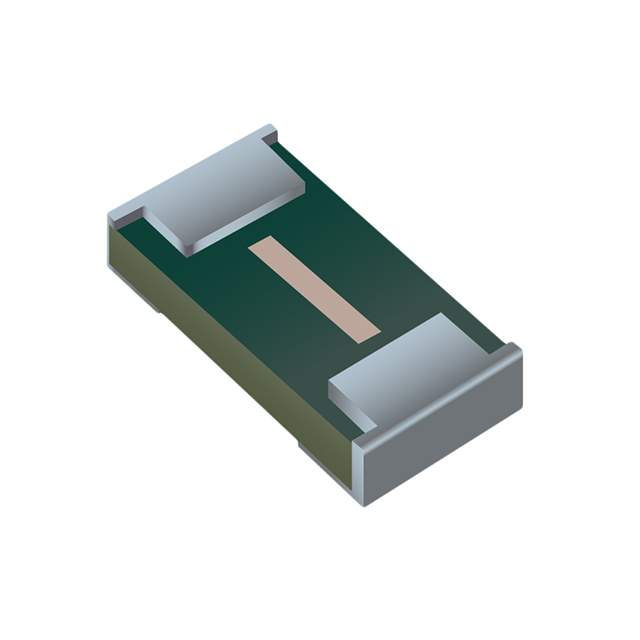

SF-0402FP250F-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402FP250F-2

Part No SF-0402FP250F-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402FP250F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402FPxxxF
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5 A
Voltage Rating - DC 35 V
Response Time Fast Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.22
Approval Agency UL
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.039" L x 0.020" W x 0.013" H (1.00mm x 0.51mm x 0.33mm)
DC Cold Resistance 0.018 Ohms
Base Product Number SF-0402
Other Names SF-0402FP250F-2CT,118-SF-0402FP250F-2CT,118-SF-0402FP250F-2DKR,118-SF-0402FP250F-2TR,SF-0402FP250F-2DKR,SF-0402FP250F-2CT,SF-0402FP250F-2DKR,SF-0402FP250F-2TR,SF-0402FP250F-2TR
Standard Package 20,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302191-SF-0402FP250F-2
Ultra Librarian 3D Model Ultra Librarian SF-0402FP250F-2 CAD Model

Description

The Bourns SinglFuse™ SF-0402FPxxxF is a board mount fuse that comes in a package of 0402 (1005 Metric).

  • Voltage Rating: 35V
  • Current Rating: 2.5A
  • Type: Fast-Blow
  • Breaking Capacity: 35A @ rated voltage
  • Melting I2t: 0.22
  • DC Cold Resistance: 0.018 Ohms
  • Response Time: Fast Blow
  • Packaging: Tape & Reel
  • Component: Surface-Mount
  • Application: Ideal for use in circuit protection and fuses applications
