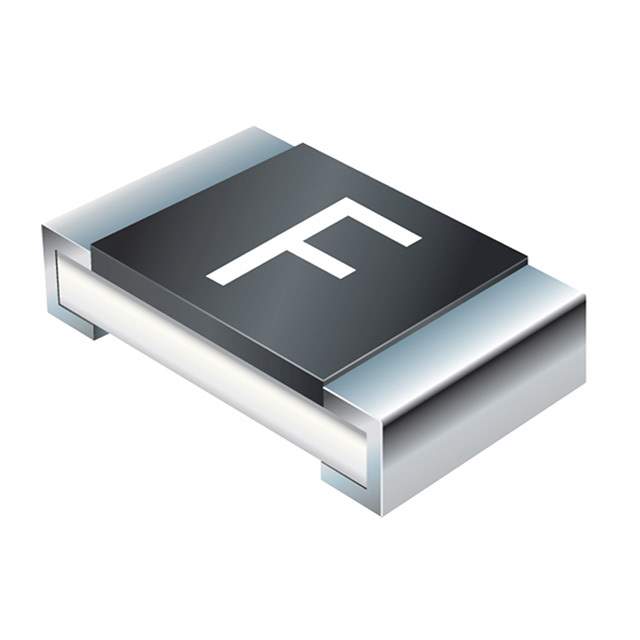

SF-0402FP125-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402FP125-2

Part No SF-0402FP125-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402FP125-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402FP
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.25 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.01344
Approval Agency UL
Temperature Range - Operating -20°C ~ 150°C
Dimension 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm)
Base Product Number SF-0402
Other Names SF-0402FP125-2TR,SF-0402FP125-2DKR,SF-0402FP125-2DKR,118-SF-0402FP125-2TR,118-SF-0402FP125-2DKR,SF-0402FP125-2TR,SF-0402FP125-2CT,SF-0402FP125-2CT,118-SF-0402FP125-2CT
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302199-SF-0402FP125-2
Ultra Librarian 3D Model Ultra Librarian SF-0402FP125-2 CAD Model

Description

The SinglFuse™ SF-0402FP is a board mount circuit protection fuse that has a fast blow response time.

  • Voltage Rating: 32V
  • Current Rating: 1.25A
  • Breaking Capacity: 35A @ the rated voltage
  • Melting I2t: 0.01344
  • Package: 10,000
  • Standard Package: Yes
  • Win Source Part Number: 1302199-SF-0402FP125-2
  • Manufacturer: Bourns Inc.
  • Dimension: 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm)
  • Mounting: SMD (SMT) technology
  • Temperature Range: -20°C to 150°C
  • REACH: Unaffected
  • Approval: UL
  • Other Names: SF-0402FP125-2TR, SF-0402FP125-2DKR, and 118-SF-0402FP125-2CT
