Same model may have multiple batches, images only for reference.

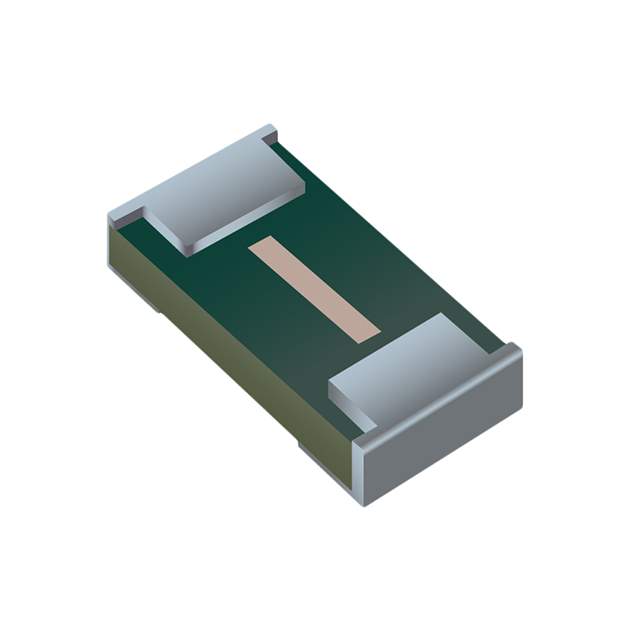

SF-0402FP020F-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402FP020F-2

Part No SF-0402FP020F-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402FP020F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402FPxxxF
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 200 mA
Voltage Rating - DC 35 V
Response Time Fast Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.0017
Approval Agency UL
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.039" L x 0.020" W x 0.013" H (1.00mm x 0.51mm x 0.33mm)
DC Cold Resistance 0.6 Ohms
Base Product Number SF-0402
Other Names SF-0402FP020F-2TR,SF-0402FP020F-2DKR,SF-0402FP020F-2CT
Standard Package 20,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302190-SF-0402FP020F-2
Ultra Librarian 3D Model Ultra Librarian SF-0402FP020F-2 CAD Model

Description

The SinglFuse™ SF-0402FPxxxF is a fast-blow board mount fuse, designed to provide protection to the circuit against overcurrent conditions.

  • Voltage Rating: 35V DC
  • Breaking Capacity: 35A @ rated voltage
  • DC Cold Resistance: 0.6 Ohms
  • Melting I2t: 0.0017
  • Packaging: Tape and Reel
  • Standard Package: 20,000
  • Component: SMD
  • Package/Case Size: 0402 (1005 metric)
  • Operating Temperature: -55°C to 90°C
  • Dimension: 0.039" L x 0.020" W x 0.013" H (1.00mm x 0.51mm x 0.33mm)
  • Other Names: SF-0402FP020F-2TR, SF-0402FP020F-2DKR, and SF-0402FP020F-2CT
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.10.0040
  • Manufacturer: Bourns Inc.
