Same model may have multiple batches, images only for reference.

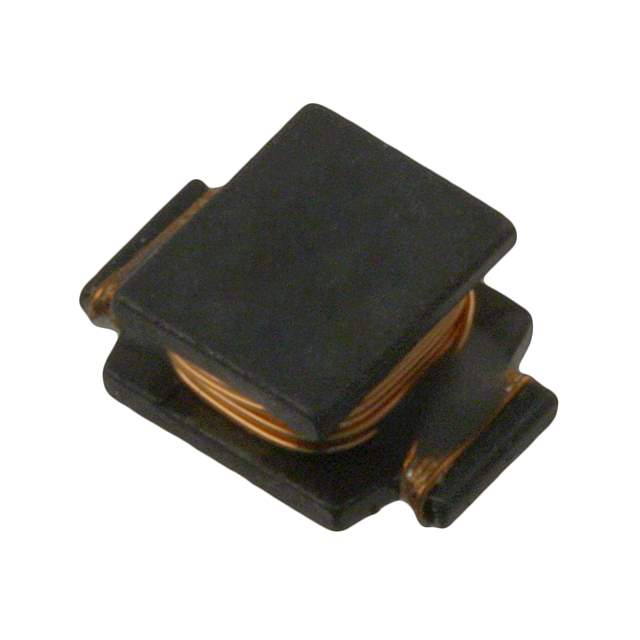

SDR0703-1R0ML Real Image
Same model may have multiple batches, images only for reference.

SDR0703-1R0ML

Part No SDR0703-1R0ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0703-1R0ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0703
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 3.2A
Shielding Unshielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq 25 @ 7.96MHz
Frequency - Self Resonant 160MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max) 0.106" (2.70mm)
Base Product Number SDR0703
Other Names SDR0703-1R0MLTR,SDR0703-1R0ML,-SDR0703-1R0MLTR,SDR0703-1R0MLCT,-SDR0703-1R0ML,-SDR0703-1R0ML,SDR07031R0ML,-SDR0703-1R0MLCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274744-SDR0703-1R0ML
Ultra Librarian 3D Model Ultra Librarian SDR0703-1R0ML CAD Model

Description

The Bourns Inc. SDR0703-1R0ML is a drum core, wirewound inductor that is unshielded and has a ferrite core material.

  • Inductance: 1 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 42mOhm Max
  • Q @ Freq: 25 @ 7.96MHz
  • Frequency - Self-Resonant: 160MHz
  • Current Rating (amps): 2.2 A
  • Current - Saturation (Isat): 3.2A
  • Package/Case: Nonstandard
  • Packaging: Tape & Reel (TR) and Cut Tape (CT)
  • Temperature Range: -40°C to 125°C
  • REACH: Unaffected
