Same model may have multiple batches, images only for reference.

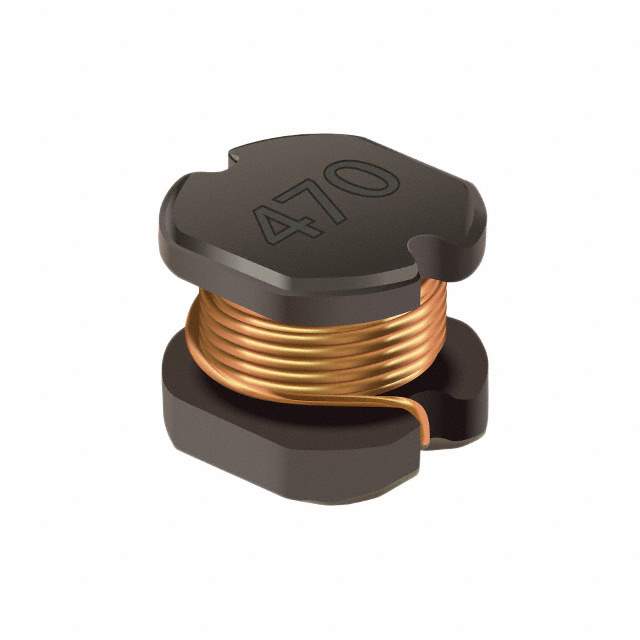

SDE0604A-390M Real Image
Same model may have multiple batches, images only for reference.

SDE0604A-390M

Part No SDE0604A-390M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE0604A-390M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE0604A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 39 µH
Tolerance ±20%
Current Rating (Amps) 1.4 A
Current - Saturation (Isat) 1A
Shielding Unshielded
DC Resistance (DCR) 320mOhm Max
Frequency - Self Resonant 17MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDE0604A
Other Names SDE0604A-390MCT,SDE0604A-390MCT,SDE0604A-390MDKR,SDE0604A-390MTR,118-SDE0604A-390MTR,118-SDE0604A-390MCT,SDE0604A-390MTR,SDE0604A-390MDKR,118-SDE0604A-390MDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274919-SDE0604A-390M
Ultra Librarian 3D Model Ultra Librarian SDE0604A-390M CAD Model

Description

The SDE0604A-390M is a fixed inductor that belongs to the SDE0604A series.

  • Series: SDE0604A
  • Core Type: Drum core, wirewound
  • Package Type: Tape & Reel
  • Shielding: Unshielded
  • Inductance: 39 µH
  • Tolerance: ±20%
  • Height: 0.189" (4.80mm) Max
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Rating: AEC-Q200 rated
  • Core Material: Ferrite
  • Self-Resonant Frequency: 17MHz
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 320mOhm Max
  • Operating Temperature: -40°C ~ 125°C
  • Dimensions: 0.228" L x 0.205" W (5.80mm x 5.20mm)
  • MSL Level: 1 (Unlimited)
  • Current Rating: 1.4 A
  • Inductance Frequency-Test: 1 MHz
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
  • Manufacturer: Bourns Inc.
