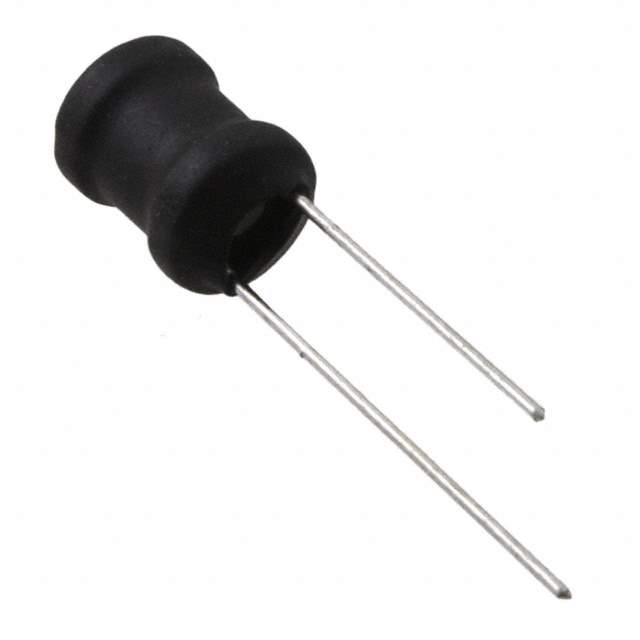

RLB9012-390KL Real Image
Same model may have multiple batches, images only for reference.

RLB9012-390KL

Part No RLB9012-390KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 39UH 1.85A 100 MOHM TH / 39 µH Unshielded Drum Core, Wirewound Inductor 1.85 A 100mOhm Max Radial, Vertical Cylinder
Datasheet
RLB9012-390KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 39 µH
Tolerance ±10%
Current Rating (Amps) 1.85 A
Shielding Unshielded
DC Resistance (DCR) 100mOhm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 6.9MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.354" Dia (9.00mm)
Height - Seated (Max) 0.480" (12.20mm)
Base Product Number RLB9012
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number RLB9012390KL
Standard Package 200
Win Source Part Number 1327927-RLB9012-390KL
Ultra Librarian 3D Model Ultra Librarian RLB9012-390KL CAD Model

Description

The Bourns RLB9012-390KL is a fixed inductor with a drum core and wirewound type.

  • Shielding: Unshielded
  • Size: 0.354 inches in diameter
  • Height: 0.480 inches
  • Inductance: 39 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q @ Freq: 30 @ 2.52MHz
