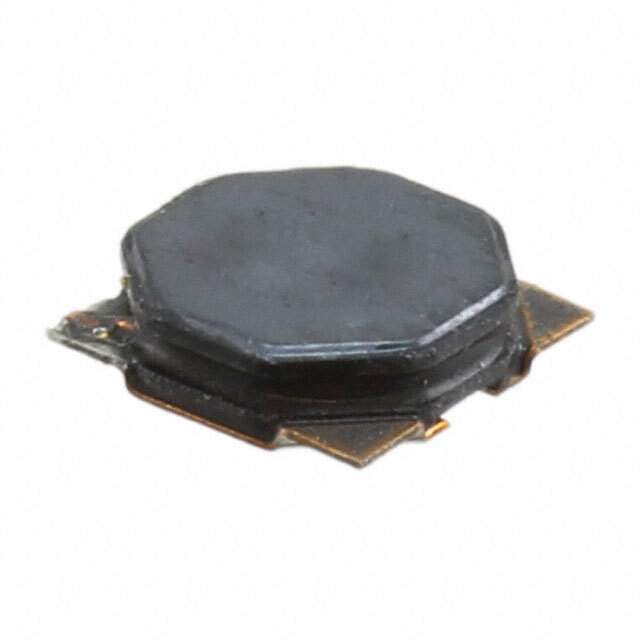

SRN4012-1R0M

Part No SRN4012-1R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4012
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 2.8A
Shielding Semi-Shielded
DC Resistance (DCR) 45mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRN4012
Other Names SRN4012-1R0MTR,SRN4012-1R0MDKR,SRN4012-1R0MCT
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274366-SRN4012-1R0M
Ultra Librarian 3D Model Ultra Librarian SRN4012-1R0M CAD Model

Description

The SRN4012 series inductor from Bourns Inc. is a semi-shielded fixed inductor with an inductance of 1 µH.

  • Tolerance: ±20%
  • DC Resistance: 45mOhm Max
  • Package/Case: Non-standard
  • Height Seated (max): 0.047" (1.20mm)
  • Current Rating: 2.2A
  • Mounting: SMD (SMT)
  • Status: Obsolete
