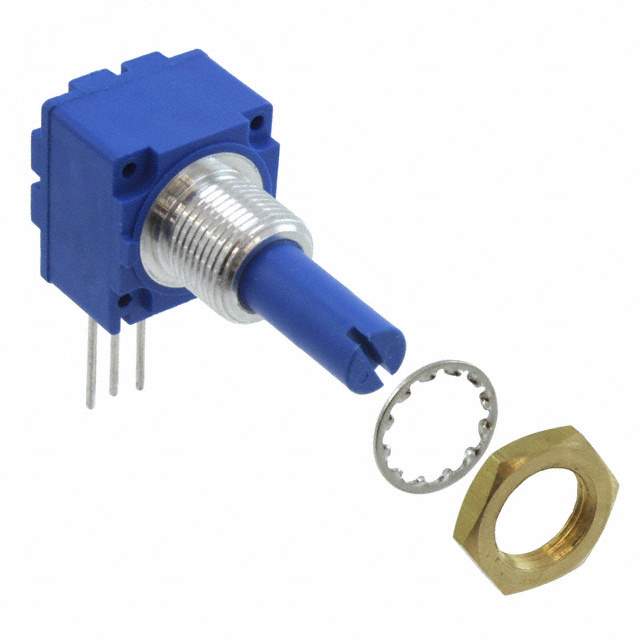

Same model may have multiple batches, images only for reference.

91R1A-R22-B20L

Name: 91R1A-R22-B20L
Brand: Bourns Inc.
SKU: 1021386
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	91R1A-R22-B20L
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	POT 100K OHM 1W PLASTIC LINEAR / 100k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Conductive Plastic 1W PC Pins
Datasheet	91R1A-R22-B20L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr	Bourns Inc.
Series	91
Package	Bulk
Resistance (Ohms)	100k
Tolerance	±20%
Power (Watts)	1W
Built in Switch	None
Number of Turns	1
Taper	Linear
Number of Gangs	1
Adjustment Type	Side Adjustment
Temperature Coefficient	±1000ppm/°C
Rotation	300°
Resistive Material	Conductive Plastic
Termination Style	PC Pins
Actuator Type	Slotted
Actuator Length	0.866" (22.00mm)
Actuator Diameter	0.236" (6.00mm)
Bushing Thread	M10 x 0.75
Mounting Type	Panel Mount
Size - Body	Rectangular - 0.687" x 0.625" Face (17.45mm x 15.88mm)
Base Product Number	91R1A
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	91R1AR22B20L
Standard Package	5
Win Source Part Number	1021386-91R1A-R22-B20L
Ultra Librarian 3D Model	Ultra Librarian 91R1A-R22-B20L CAD Model

Alternative Products

Description

The Bourns Inc. 91 series 1021386-91R1A-R22-B20L rotary potentiometer is a panel-mount device with a slotted actuator type. It has a resistance of 100k with a tolerance of ±20% and a temperature coefficient of ±1000ppm/°C.

Resistance: 100k
Tolerance: ±20%
Temperature Coefficient: ±1000ppm/°C
Power Rating: 1W
Number of Turns: One
Actuator Length: 0.866" (22.00mm)
Bushing Thread: M10 x 0.75
Taper: Linear
Rotation: 300°
Package: Bulk
Size-Body: Rectangular - 0.687" x 0.625" face (17.45mm x 15.88mm)
REACH: Affected
HTSUS: 8533.40.8070
