Same model may have multiple batches, images only for reference.

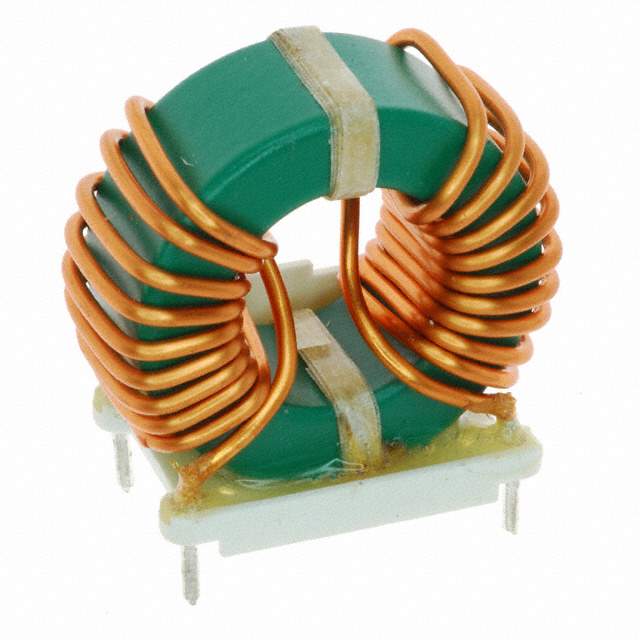

8121-RC Real Image
Same model may have multiple batches, images only for reference.

8121-RC

Part No 8121-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 1MH 20A 2LN TH / Common Mode Inductors (with Optional Header) Dielectric strength: 1500 Vrms
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Bulk
Number of Lines 2
Inductance at Frequency 1mH at 1kHz
Current Rating (Maximum) 20A
DC Resistance (DCR) (Maximum) 7mOhm
Temperature Range - Operating -55°C ~ 105°C
Mounting Style Through Hole
Dimension 1.700" L x 0.900" W (43.18mm x 22.86mm)
Height (Maximum) 1.650" (41.91mm)
Manufacturer Package Vertical, 4 PC Pin
Part Number Series 8100
Manufacturer Pack Quantity 168
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805915-8121-RC
Ultra Librarian 3D Model Ultra Librarian 8121-RC CAD Model

Description

Bourns Inc. offers 805915-8121-RC, a vertical, 4 PC pin electronic component.

  • Dimension: 1.700" L x 0.900" W (43.18mm x 22.86mm)
  • Mounting Style: Through Hole
  • Current Rating (Maximum): 20A
  • DC Resistance (DCR) (Maximum): 7mOhm
  • Inductance @ Frequency: 1mH @ 1kHz
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 168
