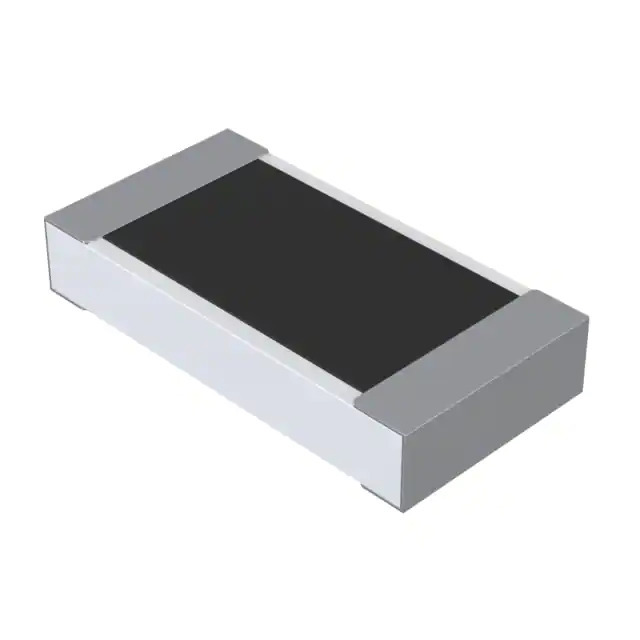

RLP73K2BR20JTD TE Connectivity
Same model may have multiple batches, images only for reference.

RLP73K2BR20JTD

Part No RLP73K2BR20JTD
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 0.2 OHM 5% 1/2W 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series RL73, CGS
Package Tape & Reel
Product Status Active
Resistance 200 mOhms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
Base Product Number RLP73K2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375530-RLP73K2BR20JTD
Ultra Librarian 3D Model Ultra Librarian RLP73K2BR20JTD CAD Model

Description

The RL73, CGS Chip Resistor is a reliable and high-performance component for surface mount applications, manufactured by TE Connectivity Passive Product.

  • Temperature Range: -55°C to 155°C
  • Packaging: Tape & Reel
  • Package / Case: 1206 (3216 Metric)
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Resistance: 200 mOhms
