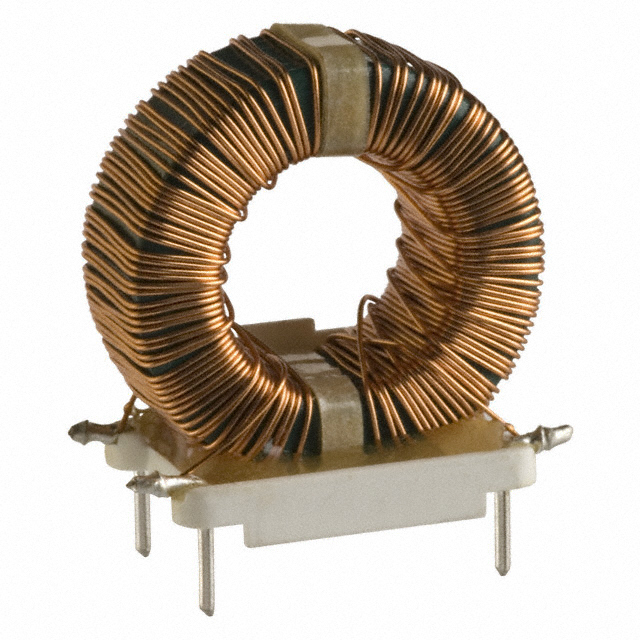

7105-RC Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7105-RC

Part No 7105-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 4.25MH 1A 2LN TH
Datasheet
7105-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Lines 2
Inductance @ Frequency 4.25 mH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 125mOhm
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Size / Dimension 0.700" Dia x 0.550" W (17.78mm x 13.97mm)
Height (Max) 0.700" (17.78mm)
Case / Package Vertical, No Base, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530306-7105-RC
Ultra Librarian 3D Model Ultra Librarian 7105-RC CAD Model
