Same model may have multiple batches, images only for reference.

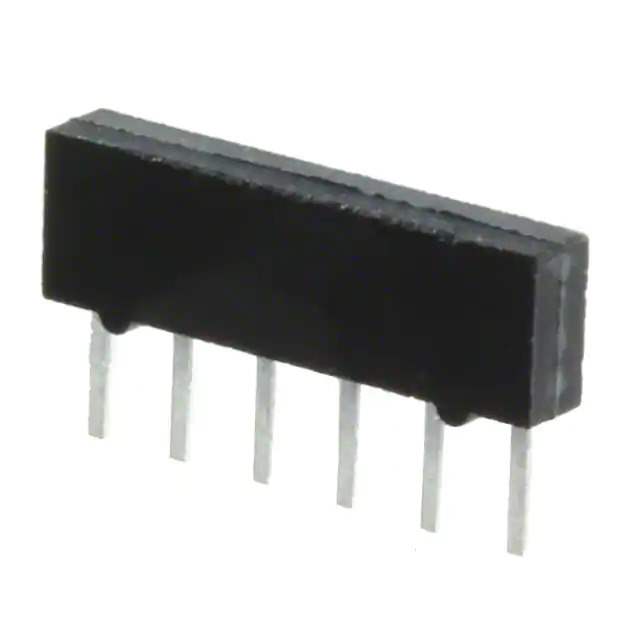

4306R-101-222LF Real Image
Same model may have multiple batches, images only for reference.

4306R-101-222LF

Part No 4306R-101-222LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 5 RES 2.2K OHM 6SIP / 2.2k Ohm ±2% 200mW Power Per Element Bussed 5 Resistor Network/Array ±100ppm/°C 6-SIP
Datasheet
4306R-101-222LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Bourns Inc.
Series 4300R
Package Tube
Product Status Active
Circuit Type Bussed
Resistance (Ohms) 2.2k
Tolerance ±2%
Number of Resistors 5
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 6
Power Per Element 200mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 6-SIP
Supplier Device Package 6-SIP
Size / Dimension 0.584" L x 0.085" W (14.83mm x 2.16mm)
Height - Seated (Max) 0.195" (4.95mm)
Base Product Number 4306R
Standard Package 35 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0050
California Prop 65 Warning Information
Win Source Part Number 856036-4306R-101-222LF
Ultra Librarian 3D Model Ultra Librarian 4306R-101-222LF CAD Model

Description

The 856036-4306R-101-222LF is a resistor network array by Bourns Inc.

  • Series: 4300R
  • Package: Tube
  • Size/Dimension: 0.584" L x 0.085" W (14.83mm x 2.16mm)
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Resistance Value: 2.2k Ohms
  • Resistors: 5
  • Circuit Type: Bussed
  • Mounting Type: Through-Hole
  • Product Status: Active
