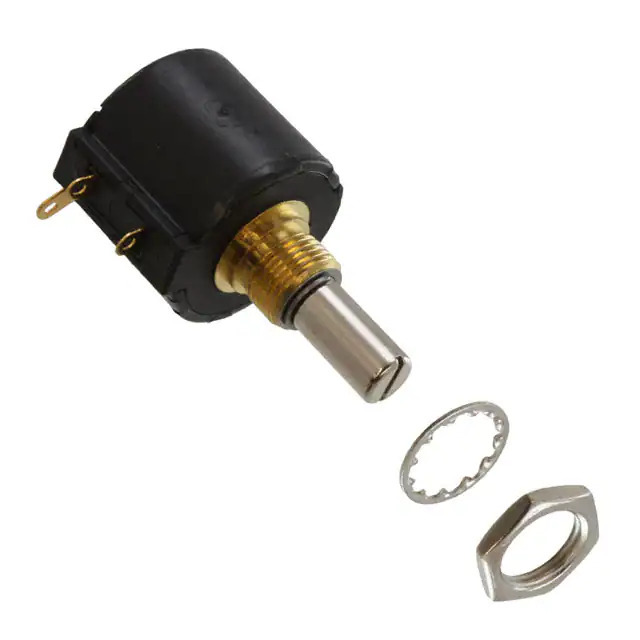

Same model may have multiple batches, images only for reference.

3549S-1AA-102A

Name: 3549S-1AA-102A
Brand: Bourns Inc.
SKU: 1354433
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3549S-1AA-102A
Manufacturer	Bourns Inc.
Catalog	Rotary Potentiometers, Rheostats
Description	POT 1K OHM 2W WIREWOUND LINEAR / 1k Ohm 1 Gang Linear Panel Mount Potentiometer None 10.0 Kierros Wirewound 2W Solder Lug
Datasheet	3549S-1AA-102A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr	Bourns Inc.
Series	3549
Package	Tray
Product Status	Active
Resistance (Ohms)	1k
Tolerance	±3%
Power (Watts)	2W
Built in Switch	None
Number of Turns	10
Features	-
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	±50ppm/°C
Rotation	3600°
Resistive Material	Wirewound
Termination Style	Solder Lug
Actuator Type	Slotted
Actuator Length	0.813" (20.64mm)
Actuator Diameter	0.250" (6.35mm)
Bushing Thread	3/8-32
Mounting Type	Panel Mount
Size - Body	Round - 0.885" Dia (22.48mm)
Base Product Number	3549S
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.31.0000
Win Source Part Number	1354433-3549S-1AA-102A
Ultra Librarian 3D Model	Ultra Librarian 3549S-1AA-102A CAD Model

Description

The Bourns Inc. 3549 is a rotary potentiometer rheostat that is commonly used in various electronic circuits.

Resistance: 1k Ohms
Power Rating: 2W
Actuator Type: Slotted
Termination Style: Solder Lug
Tolerance: ±3%
Temperature Coefficient: ±50ppm/°C
Taper: Linear
Rotation: 3600°
Status: Active
REACH: Affected
Body Diameter: 0.885" (22.48mm)
Actuator Length: 0.813" (20.64mm)
