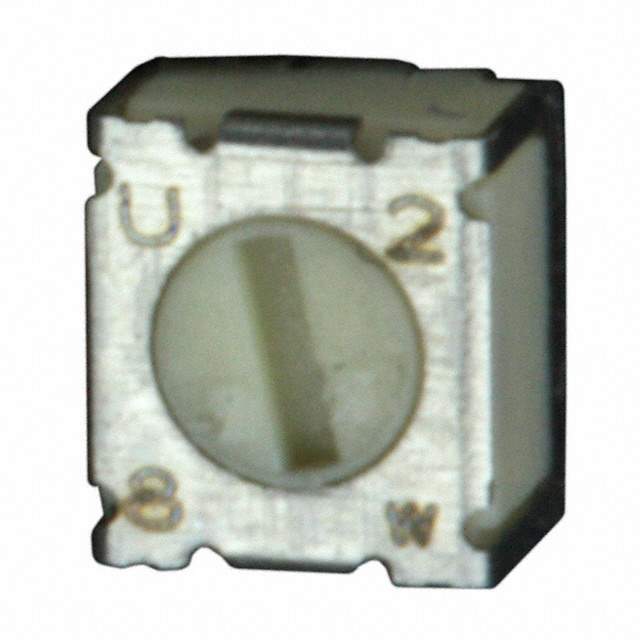

Same model may have multiple batches, images only for reference.

3312J-1-105E

Name: 3312J-1-105E
Brand: Bourns Inc.
SKU: 1019366
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3312J-1-105E
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 1M OHM 0.1W J LEAD TOP / 1 MOhms 0.1W, 1/10W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet	3312J-1-105E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3312 - Sealed
Package	Tape & Reel
Resistance	1 mOhms
Power (Watts)	0.1W, 1/10W
Tolerance	±20%
Temperature Coefficient	±100ppm/°C
Number of Turns	1
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting	SMD (SMT)
Termination Style	J Lead
Dimension	Rectangular - 0.110" x 0.098" Face (2.80mm x 2.50mm)
Base Product Number	3312J
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	3312J1105E,3312J-1-105ECT,3312J-1-105ETR,2266-3312J-1-105E,3312J-1-105EDKR
Standard Package	500
Win Source Part Number	1019366-3312J-1-105E
Ultra Librarian 3D Model	Ultra Librarian 3312J-1-105E CAD Model

Description

The Bourns Inc. Trimpot® 3312 - Sealed 1019366-3312J-1-105E is a trimmer potentiometer with a J lead termination style.

Resistive Material: cermet
Resistance: 1 mOhms
Tolerance: ±20%
Temperature Coefficient: ±100ppm/°C
Power: 0.1W, 1/10W
Turns: one
Adjustment: top adjustable
Package: tape and reel
Mounting: SMD (SMT)
Dimension: 0.110 inches x 0.098 inches or 2.80mm x 2.50mm
REACH: REACH unaffected
Market Status: highly demanded
