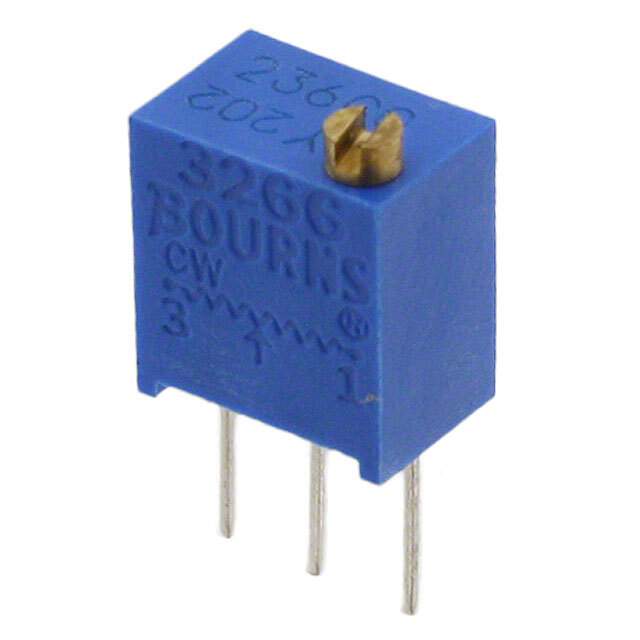

Same model may have multiple batches, images only for reference.

3266Y-1-103LF

Name: 3266Y-1-103LF
Brand: Bourns Inc.
SKU: 1026073
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3266Y-1-103LF
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 10K OHM 0.25W PC PIN TOP / 10 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
Datasheet	3266Y-1-103LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3266 - Sealed
Package	Tube
Resistance	10 kOhms
Power (Watts)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	12
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Through Hole
Termination Style	PC Pins
Dimension	Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number	3266Y
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	3266Y1103LF
Standard Package	100
Win Source Part Number	1026073-3266Y-1-103LF
Ultra Librarian 3D Model	Ultra Librarian 3266Y-1-103LF CAD Model

Alternative Products

Description

The Trimpot® 3266 - Sealed potentiometer is a top adjustment type variable resistor designed for through hole mounting.

Adjustment Type: top adjustment
Mounting: through hole
Dimension: 0.250" x 0.170" face (6.35mm x 4.32mm)
Resistive Material: cermet
Resistance: 10 kOhms
Power Rating: 0.25W
Turns: 12
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Package: tube
ECCN: EAR99
