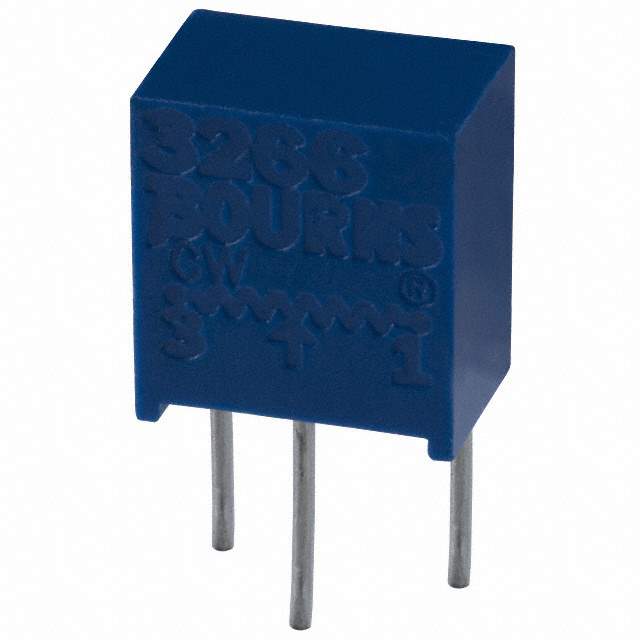

3266X-1-203LF Real Image
Same model may have multiple batches, images only for reference.

3266X-1-203LF

Part No 3266X-1-203LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description 1/4 Square Trimming Potentiometer | TRIMMER 20KOHM 0.25W PC PIN SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Tube
Resistance 20 kOhms
Power (W) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Parts Dimension Rectangular - 0.250" x 0.170" Face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
Family Part Number 3266X
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1128142-3266X-1-203LF
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian 3266X-1-203LF CAD Model

Description

The Bourns Inc. 1128142-3266X-1-203LF is a cermet trimmer potentiometer with a resistance of 20 kOhms, ±10% tolerance, and ±100ppm/°C temperature coefficient.

  • Manufacturer: Bourns Inc.
  • Type: Cermet Trimmer Potentiometer
  • Resistance: 20 kOhms
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W
  • Mounting: Through-Hole
  • Adjustment Type: Side Adjustment
  • Turns: 12
  • Package Quantity: 100 pieces
  • Shape: Rectangular 0.250" x 0.170" face x 0.270" H (6.35mm x 4.31mm x 6.85mm)
