Same model may have multiple batches, images only for reference.

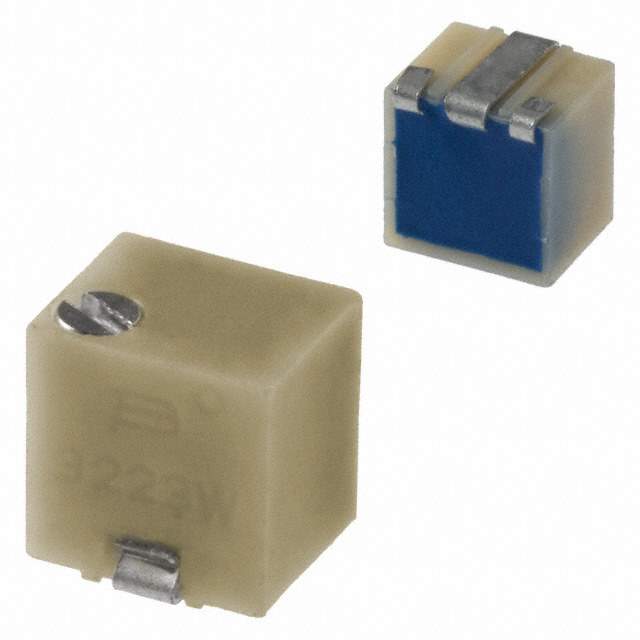

3223W-1-501 Real Image
Same model may have multiple batches, images only for reference.

3223W-1-501

Part No 3223W-1-501
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description TRIMMER 500OHM 0.125W J LEAD TOP / 500 Ohms 0.125W, 1/8W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment
Datasheet
3223W-1-501 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3223 - Sealed
Package Tube
Resistance 500 Ohms
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm)
Base Product Number 3223W
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 3223W1501
Standard Package 50
Win Source Part Number 1225497-3223W-1-501
Ultra Librarian 3D Model Ultra Librarian 3223W-1-501 CAD Model

Description

The Bourns Inc. 3223W1501 is a 500 ohms trimmer potentiometer.

  • Manufacturer: Bourns Inc.
  • Resistance: 500 ohms
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Series: Trimpot® 3223 - Sealed
  • Turns: 11
  • Adjustment Type: Top Adjustment
  • Dimension: 0.154" x 0.125" face (3.90mm x 3.18mm)
  • Mounting: SMD (SMT)
  • Halogen Free: Yes
  • ECCN: EAR99
