Same model may have multiple batches, images only for reference.

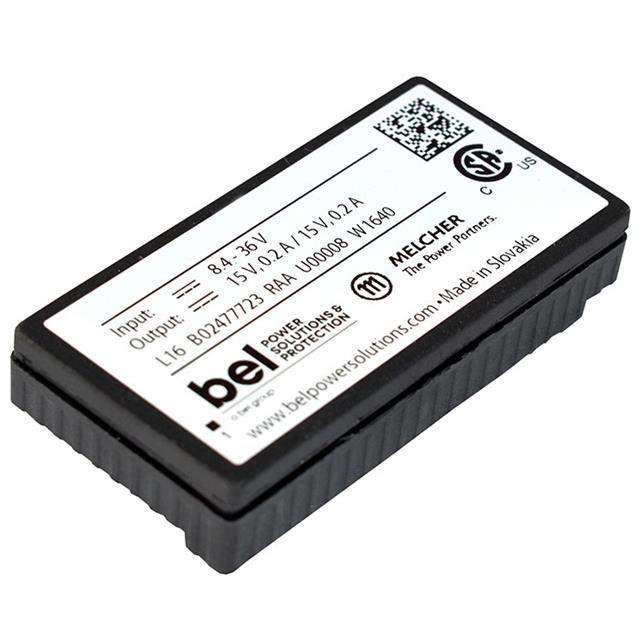

40IMX7-03-8G Real Image
Same model may have multiple batches, images only for reference.

40IMX7-03-8G

Part No 40IMX7-03-8G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 7W / Isolated Module, Conformal Coated DC DC Converter 1 Output 3.3V 1.5A 16.8V - 75V Input
Datasheet
40IMX7-03-8G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bel Power Solutions
Series Melcher IMX7 (7W)
Package Bulk
Type Isolated Module, Conformal Coated
Number of Outputs 1
Voltage - Input (Min) 16.8V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 1.5A
Power (Watts) 7 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial) , Railway
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 79%
Mounting Type Through Hole
Package / Case 14-DIP Module, 9 Leads
Size / Dimension 2.00" L x 1.00" W x 0.42" H (50.8mm x 25.4mm x 10.5mm)
Base Product Number 40IMX7
Standard Package 60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1350415-40IMX7-03-8G
Ultra Librarian 3D Model Ultra Librarian 40IMX7-03-8G CAD Model

Description

The Melcher IMX7 (7W) is an isolated module DC-DC converter that is conformal coated.

  • Application: ITE (Commercial) and Railway
  • Power Output: 7W
  • Voltage Isolation: 1.5kV
  • Size: 2.00" L x 1.00" W x 0.42" H (50.8mm x 25.4mm x 10.5mm)
  • Mounting Type: Through Hole
  • Package: 14-DIP Module
  • Number of Leads: 9
  • Efficiency: 79%
  • Output Voltage: 3.3V
  • Features: Remote On/Off, OCP, OTP, OVP, SCP, and UVLO
  • Output Current: 1.5A
  • Operating Temperature: -40°C to 85°C
  • Packaging: Bulk
  • Package Quantity: 60
