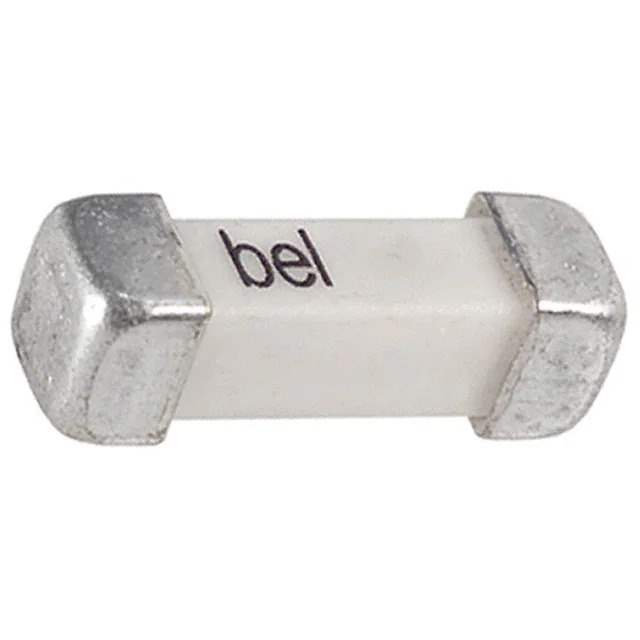

SMP 500 Real Image
Same model may have multiple batches, images only for reference.

SMP 500

Part No SMP 500
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MNT 500MA 600VAC 125VDC
Datasheet
SMP 500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Bel Fuse Inc.
Series SMP
Package Tape & Reel
Product Status Obsolete
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - AC 600 V
Voltage Rating - DC 125 V
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 60A AC, 100A DC
Melting I2t 2.3
Approval Agency CE, cURus
Size / Dimension 0.380" L x 0.120" W x 0.120" H (9.65mm x 3.05mm x 3.05mm)
DC Cold Resistance 0.32 Ohms
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 853360-SMP 500
Ultra Librarian 3D Model Ultra Librarian SMP 500 CAD Model

Description

The 853360-SMP 500 is a surface mountable fuse designed for circuit protection.

  • Series: SMP
  • Voltage Rating: 600V AC, 125V DC
  • Breaking Capacity: 60A AC, 100A DC @ the rated voltage
  • Response Time: Unknown
  • Melting I2t: 2.3
  • Packaging: Tape & reel
  • Size: 0.380" L x 0.120" W x 0.120" H (9.65mm x 3.05mm x 3.05mm)
  • Standard Package: 2,000 pieces
  • ECCN: EAR99
  • REACH: Unaffected
  • Product Status: Obsolete
  • Manufacturer: Bel Fuse Inc.
  • Approvals: CE and cURus
  • MSL Level: 1 (unlimited moisture sensitivity)
