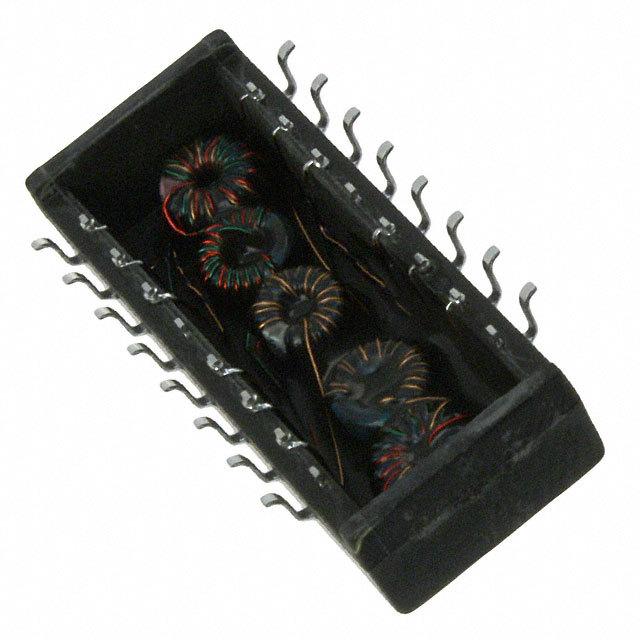

S558-5999-46-F Bel Fuse Inc.
Same model may have multiple batches, images only for reference.

S558-5999-46-F

Part No S558-5999-46-F
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description MODULE XFRMR LAN 10/100B-TX SMD / 420μH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
S558-5999-46-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100 Base-T
Inductance 420µH
Mounting Type Surface Mount
Size / Dimension 1.000" L x 0.390" W (25.40mm x 9.91mm)
Height - Seated (Max) 0.235" (5.97mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 300 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 307359-S558-5999-46-F
Ultra Librarian 3D Model Ultra Librarian S558-5999-46-F CAD Model

Description

The 307359-S558-5999-46-F is a pulse transformer designed for LAN 10/100 Base-T applications.

  • Type: Pulse Transformer
  • Application: LAN 10/100 Base-T
  • Manufacturer: Bel Fuse Inc.
  • Package: Tape & Reel
  • Size: 1.000" L x 0.390" W
  • Inductance: 420μH
  • Height: 0.235" (5.97mm) Seated
  • Mounting: Surface Mountable
  • Temperature: 0°C to 70°C
  • Compliance: REACH Compliant
  • Package Quantity: 300 pcs
