Same model may have multiple batches, images only for reference.

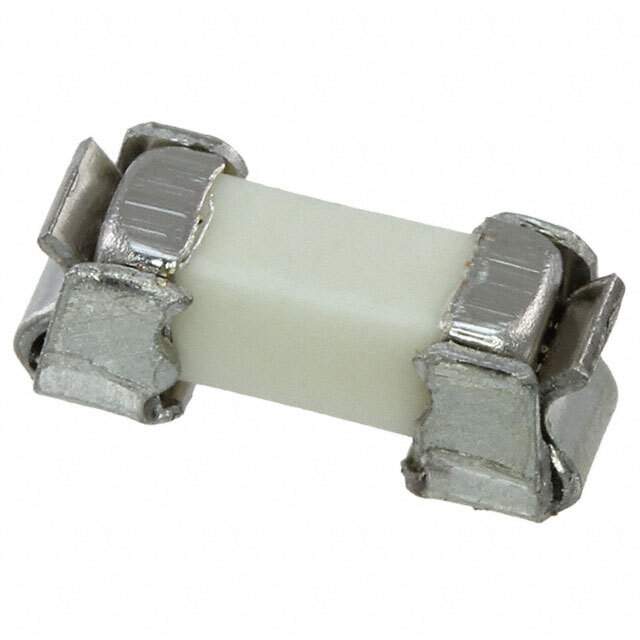

SSQC 2 Real Image
Same model may have multiple batches, images only for reference.

SSQC 2

Part No SSQC 2
Manufacturer Bel Fuse Inc.
Catalog Fuses
Datasheet
SSQC 2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series SSQC
Package Tape & Reel
Product Status Obsolete
Mounting Type Holder, Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block with Clip
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Melting I2t 1
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.330" L x 0.128" W x 0.115" H (8.38mm x 3.25mm x 2.92mm)
DC Cold Resistance 0.05 Ohms
Other Names SSQC2,SSQC 2,507-2366-6,SSQC2,507-2366-1,0679-2000-12,507-2366-2
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302241-SSQC 2
Ultra Librarian 3D Model Ultra Librarian SSQC 2 CAD Model

Description

The SSQC 2 is a circuit protection fuse manufactured by Bel Fuse Inc.

  • Manufacturer: Bel Fuse Inc.
  • Series: SSQC
  • Application: board mount
  • Voltage Rating: 125V AC and 125V DC
  • Current Rating: 2A
  • Response Time: fast blow
  • Breaking Capacity: 50A AC and 300A DC
  • Package: 500
  • Mounting: holder or surface mount
  • Classification: EAR99
  • Status: obsolete
