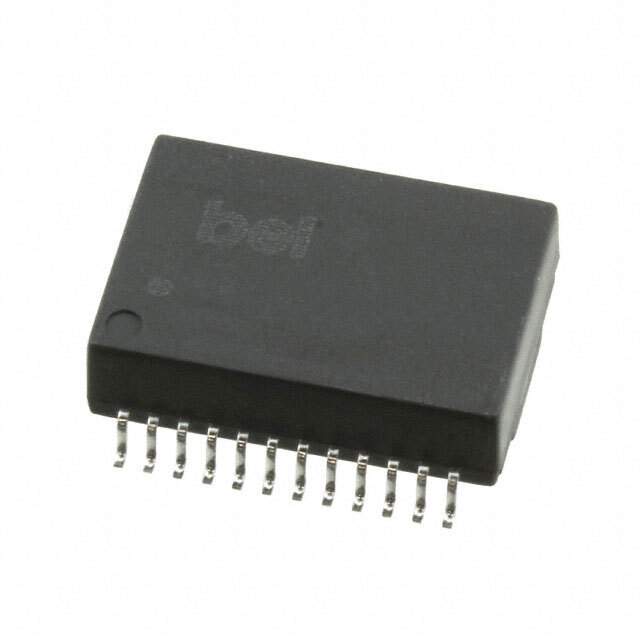

S558-5500-JD Real Image
Same model may have multiple batches, images only for reference.

S558-5500-JD

Part No S558-5500-JD
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description XFRMR LAN 2.5G 60W POE SMD / 180µH LAN 2.5G Base-T, Power over Ethernet (PoE) Pulse Transformer 1CT:1CT Surface Mount
Datasheet
S558-5500-JD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Transformer Type LAN 2.5G Base-T, Power over Ethernet (PoE)
Inductance 180µH
Mounting SMD (SMT)
Dimension 0.690" L x 0.600" W (17.53mm x 15.24mm)
Height - Seated (Max) 0.225" (5.71mm)
Temperature Range - Operating 0°C ~ 70°C
Other Names 507-2170-6,507-2170-1,507-2170-2
Standard Package 380
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232779-S558-5500-JD
Ultra Librarian 3D Model Ultra Librarian S558-5500-JD CAD Model

Description

The S558-5500-JD is a transformer product that comes in a tape and reel package.

  • Application: LAN 2.5G Base-T and Power over Ethernet (PoE)
  • Package: Tape and Reel
  • Inductance: 180μH
  • Height-Seated (Max): 0.225" (5.71mm)
  • Temperature Range: 0°C to 70°C
  • Standard Package: 380
  • Mounting Technology: SMD (SMT)
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8504.31.2000
  • Other Names: 507-2170-6, 507-2170-1, and 507-2170-2
