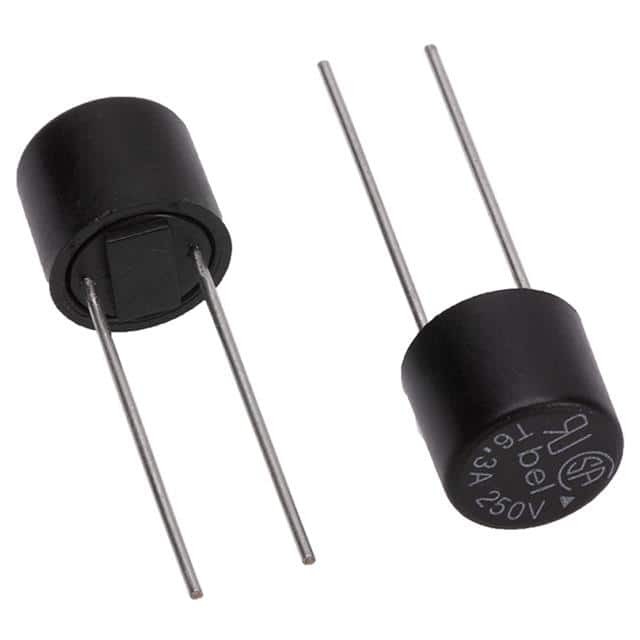

Same model may have multiple batches, images only for reference.
MRF 250 AMMO Bel Fuse Inc.
Same model may have multiple batches, images only for reference.

MRF 250 AMMO

Part No MRF 250 AMMO
Manufacturer Bel Fuse Inc.
Catalog Fuses
Datasheet
MRF 250 AMMO Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series MRF
Package Cut Tape (CT),Tape & Box (TB)
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 250 mA
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case Radial, Can, Vertical
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.023
Approval Agency AEC-Q200, CE, CSA, cULus, SEMKO, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.329" Dia x 0.303" H (8.35mm x 7.70mm)
DC Cold Resistance 0.42 Ohms
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1314877-MRF 250 AMMO
Ultra Librarian 3D Model Ultra Librarian MRF 250 AMMO CAD Model

Description

The MRF 250 AMMO is a radial, can, vertical through-hole mounted fuse from Bel Fuse Inc.

  • Voltage Rating: 250VAC
  • Current Rating: 250mA
  • Response Time: Fast blow
  • Breaking Capacity: 35A @ rated voltage
  • DC Cold Resistance: 0.42 ohms
  • Melting I2t: 0.023
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.329 inches diameter by 0.303 inches height (8.35mm x 7.70mm)
  • Packaging: Cut tape (CT) and tape & box (TB)
