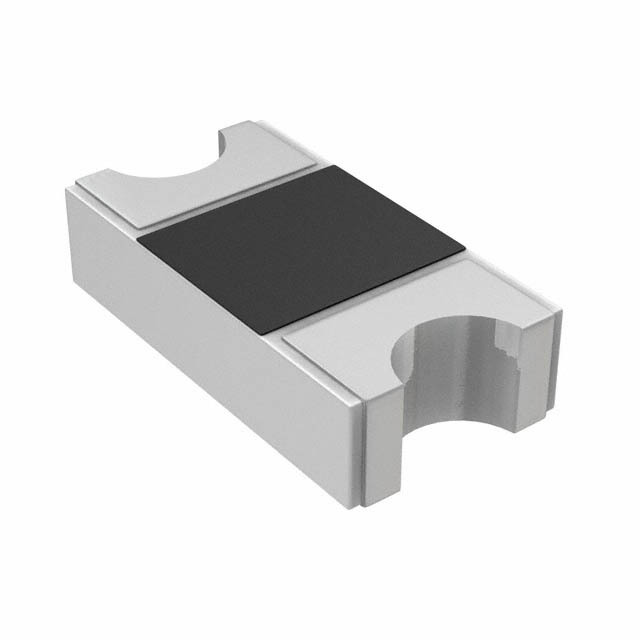

0ZCG0075AF2B Bel Fuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0ZCG0075AF2B

Part No 0ZCG0075AF2B
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 750MA 1812
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Polymeric
Voltage - Max 24V
Current - Hold (Ih) (Max) 750 mA
Current - Trip (It) 1.5 A
Current - Max 40 A
Time to Trip 200 ms
Resistance - Initial (Ri) (Min) 110 mOhms
Resistance - Post Trip (R1) (Max) 290 mOhms
Temperature Range - Operating -40°C ~ 85°C
Grade Automotive
Qualification AEC-Q200
Mounting Type Surface Mount
Case / Package 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.061" (1.55mm)
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1607240-0ZCG0075AF2B
Ultra Librarian 3D Model Ultra Librarian 0ZCG0075AF2B CAD Model
