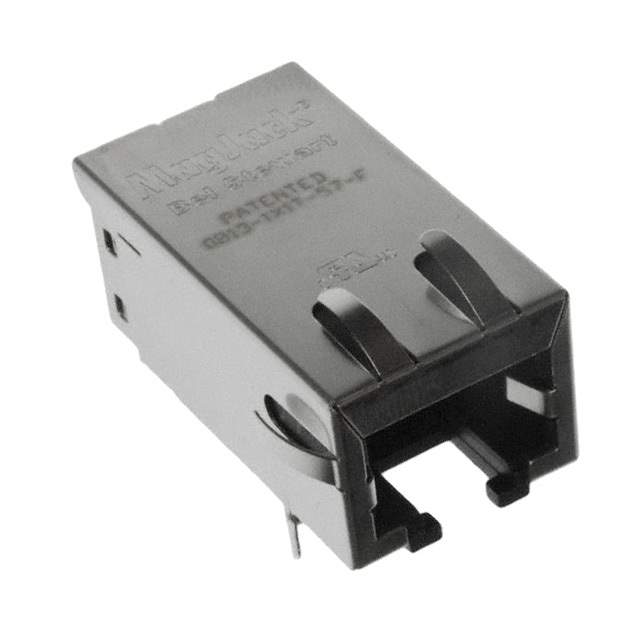

0813-1X1T-57-F

Name: 0813-1X1T-57-F
Brand: Bel Fuse Inc.
SKU: 1097798
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	0813-1X1T-57-F
Manufacturer	Bel Fuse Inc.
Catalog	Modular Connectors
Description	CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Datasheet	0813-1X1T-57-F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr	Bel Fuse Inc.
Series	MagJack®
Package	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.538" (13.66mm)
LED Color	Does Not Contain LED
Number of Cores per Jack	6
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Down
Contact Material	Copper Alloy
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	50.0µin (1.27µm)
Shield Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	08131X1T57-F,507-1421,08131X1T57F
Standard Package	40
Win Source Part Number	1097798-0813-1X1T-57-F
Ultra Librarian 3D Model	Ultra Librarian 0813-1X1T-57-F CAD Model

Alternative Products

Description

The Bel Fuse Inc. 1097798-0813-1X1T-57-F is an RJ45 connector with magnetics.

Shielding: EMI Finger
Termination Style: Solder
Contact Finish: Gold
Contact Finish Thickness: 50.0µin (1.27µm)
Package: Tray
Mounting Type: Through Hole
Angle Orientation: 90°
Operating Temperature Range: 0°C to 70°C
Height Above Board: 0.538" (13.66mm)
