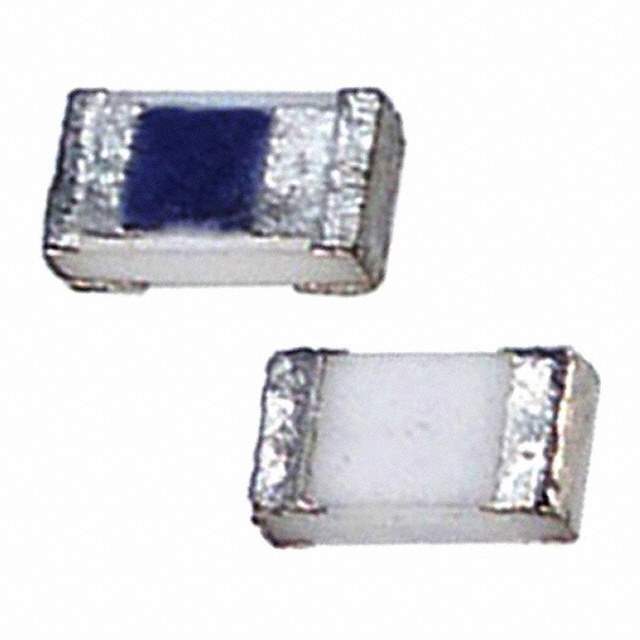

0686-1500-01 Real Image
Same model may have multiple batches, images only for reference.

0686-1500-01

Part No 0686-1500-01
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 1.5A 32VAC 63VDC
Datasheet
0686-1500-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1.5A
Voltage Rating - AC 32V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 35A AC, 50A DC
Nominal Melting - I2t 0.084
Approvals cURus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.073 Ohm
Win Source Part Number 197161-0686-1500-01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0686-1500-01 CAD Model

Description

0686-1500-01 Electronic Component

The 0686-1500-01 is a versatile and reliable electronic component designed to fit a wide range of applications. This component is known for its durability and efficiency, making it a valuable addition to any electronic assembly.

Features and Benefits

  • High Durability: Built with robust materials to withstand demanding environments.
  • Efficient Performance: Optimized for performance, ensuring minimal energy wastage.
  • Compact Design: Small form factor allows for easy integration into compact systems.

Applications

  • Consumer Electronics
  • Industrial Automation Equipment
  • Home Automation Systems
  • Telecommunication Devices

This component is ideal for developers seeking reliability and longevity in electronic designs, supporting various projects from prototypes to final products.
