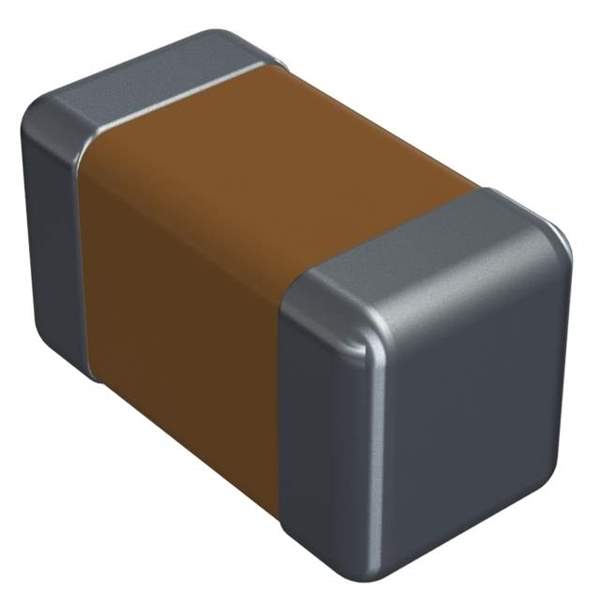

06036D225KAT2A Real Image
Same model may have multiple batches, images only for reference.

06036D225KAT2A

Part No 06036D225KAT2A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 2.2UF 6.3V X5R 0603
Datasheet
06036D225KAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel - TR
Capacitance 2.2μF
Tolerance ±10%
Voltage Rating DC 6.3V
Temperature Coefficient X5R
Operating Temperature Range -55°C ~ 85°C
Applications General
Mounting Surface Mount, MLCC
Package 0603
Size 0.063" L x 0.032" W (1.60mm x 0.81mm)
Thickness (Maximum) 0.035" (0.90mm)
Win Source Part Number 759864-06036D225KAT2A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name X5R Dielectric
Introduction Date June 30, 2003
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 06036D225KAT2A CAD Model

Description

The AVX Corporation 759864-06036D225KAT2A is a high-quality X5R dielectric capacitor.

  • Capacitance: 2.2μF
  • Tolerance: ±10%
  • Voltage Rating: 6.3V
  • Temperature Coefficient: X5R
  • Package: 0603
  • Height: 0.035" (0.90mm)
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2027
  • Alternative Parts: 6R3R14X225KV4T, CL10A225KQ5LNNC, and CL10A225KQ8NNNB
