Same model may have multiple batches, images only for reference.

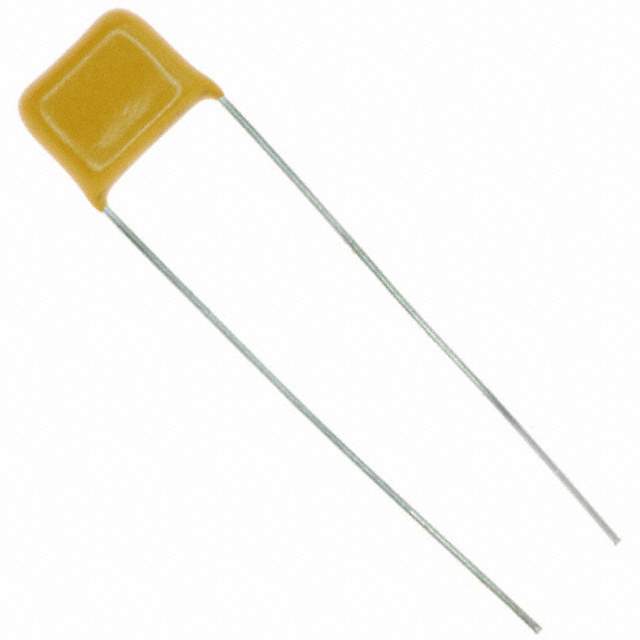

SV14AC103MAR Real Image
Same model may have multiple batches, images only for reference.

SV14AC103MAR

Part No SV14AC103MAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV14AC103MAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 10000 pF
Tolerance ±20%
Voltage - Rated 1000V (1kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.402" L x 0.200" W (10.20mm x 5.08mm)
Height - Seated (Max) 0.461" (11.70mm)
Lead Spacing 0.200" (5.08mm)
Lead Style Straight
Other Names 478-6827,-SV14AC103MAR
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302938-SV14AC103MAR
Ultra Librarian 3D Model Ultra Librarian SV14AC103MAR CAD Model

Description

This ceramic capacitor is part of the SV series and has a capacitance of 10000 pF and a voltage rating of 1000V (1kV).

  • Capacitance: 10000 pF
  • Voltage Rating: 1000V (1kV)
  • Feature: High Voltage
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Mounting: Through-Hole
  • Package/Case: Radial
  • Standard Package: 200
  • Dimensions: 0.402" L x 0.200" W (10.20mm x 5.08mm)
  • Lead Spacing: 0.200" (5.08mm)
  • Lead Style: Straight
  • Height Seated (Max): 0.461" (11.70mm)
  • Manufacturer: Kyocera AVX
  • Win Source Part Number: 1302938-SV14AC103MAR
