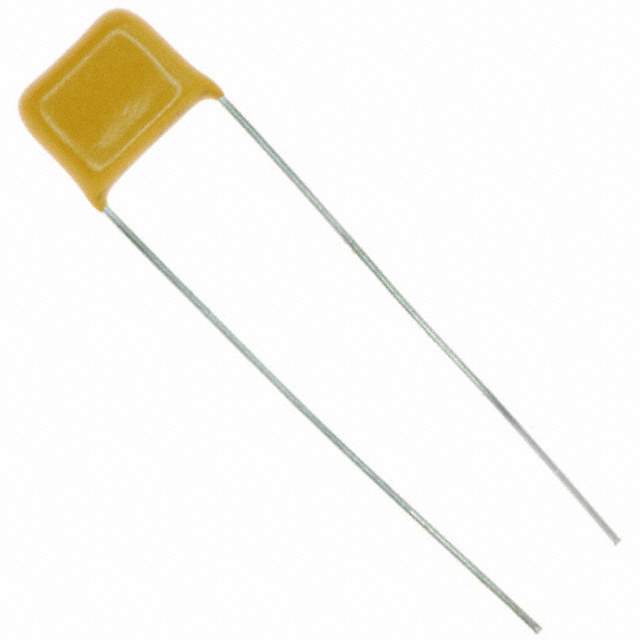

SV02HA390KAR Real Image
Same model may have multiple batches, images only for reference.

SV02HA390KAR

Part No SV02HA390KAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV02HA390KAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 39 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.320" L x 0.200" W (8.13mm x 5.08mm)
Height - Seated (Max) 0.280" (7.11mm)
Lead Spacing 0.220" (5.59mm)
Lead Style Straight
Other Names 478-4041
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302922-SV02HA390KAR
Ultra Librarian 3D Model Ultra Librarian SV02HA390KAR CAD Model

Description

The KYOCERA AVX SV series ceramic capacitor is a high-quality electronic component designed for use in general-purpose applications.

  • Capacitance: 39 pF
  • Tolerance: ±10%
  • Voltage Rating: 3000V (3kV)
  • Temperature Coefficient: C0G, NP0
  • Height (Seated): 0.280 inches (7.11mm)
  • Lead Spacing: 0.220 inches (5.59mm)
  • Lead Style: Straight
  • Package: 300 pieces of bulk ceramic capacitors
  • ECCN: EAR99 compliant
  • REACH: Unaffected
