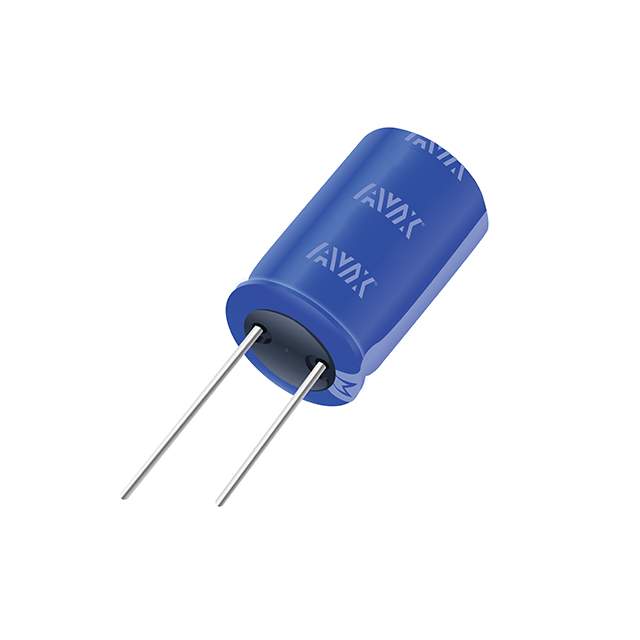

SCCR20B335PRTLE Real Image
Same model may have multiple batches, images only for reference.

SCCR20B335PRTLE

Part No SCCR20B335PRTLE
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Datasheet
SCCR20B335PRTLE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series SCC LE
Package Tray
Capacitance 3.3 F
Tolerance 0%, +100%
Voltage - Rated 2.7 V
ESR (Equivalent Series Resistance) 60mOhm @ 1kHz
Lifetime @ Temp. 2000 Hrs @ 65°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Temperature Range - Operating -40°C ~ 65°C
Other Names 478-SCCR20B335PRTLE
Standard Package 2,652
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1302759-SCCR20B335PRTLE
Ultra Librarian 3D Model Ultra Librarian SCCR20B335PRTLE CAD Model

Description

The KYOCERA AVX SCC LE series is an electric double layer capacitor designed for supercapacitors.

  • Termination: PC Pins
  • Package: Tray
  • Capacitance: 3.3 F
  • Tolerance: 0%, +100%
  • Voltage Rated: 2.7 V
  • Lead Spacing: 0.138" (3.50mm)
  • ESR (Equivalent Series Resistance): 60mOhm @ 1kHz
  • Lifetime @ temp: 2000 Hrs @ 65°C
  • Mounting Type: Through-Hole
  • Package/Case: Radial, Can
  • Temperature Range: -40°C to 65°C
  • Dimension: 0.315" Dia (8.00mm)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8532.29.0040
