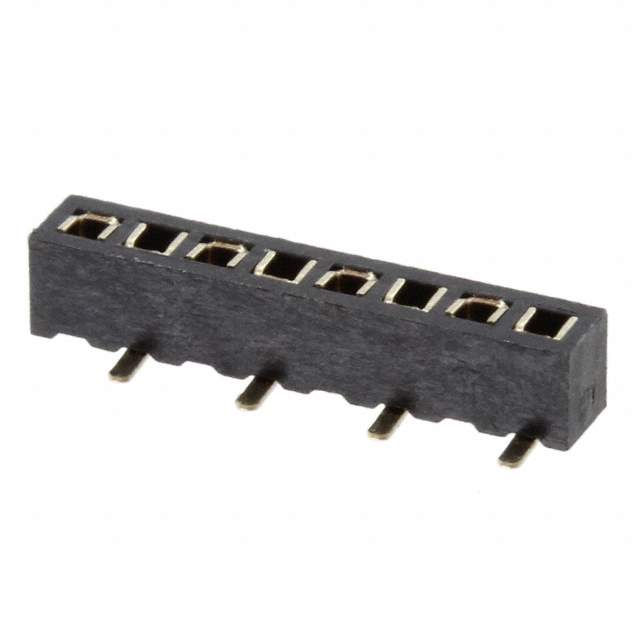

M50-3130845R

Name: M50-3130845R
Brand: Harwin Inc.
SKU: 1350071
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M50-3130845R
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 8POS 0.05 GOLD SMD / 8 Position Receptacle, Bottom or Top Entry Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet	M50-3130845R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Harwin Inc.
Series	Archer M50
Package	Tape & Reel
Connector Type	Receptacle, Bottom or Top Entry
Contact Type	Female Socket
Style	Board to Board
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	1
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	12.0µin (0.30µm)
Insulation Color	Black
Insulation Height	0.079" (2.00mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	3.1mm, 3.6mm, 3.8mm
Features	Pick and Place
Current Rating (Amps)	1A
Voltage Rating	500VAC
Applications	General Purpose, Medical, Telecommunications
Insulation Material	Polyamide (PA6T) , Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	M50-313
Standard Package	2,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350071-M50-3130845R
Ultra Librarian 3D Model	Ultra Librarian M50-3130845R CAD Model

Alternative Products

Description

The Archer M50 series connector is a board-to-board receptacle with a pick-and-place feature.

Positions Loaded: 8
Gender: Female
Applications: General Purpose, Medical, Telecommunications
Mounting Type: Surface Mount
Pitch: 0.050-inch
Shielded: Yes
Voltage Rating: 500VAC
Manufacturer: Harwin Inc.
Standard Package: 2,000 Units
