Same model may have multiple batches, images only for reference.

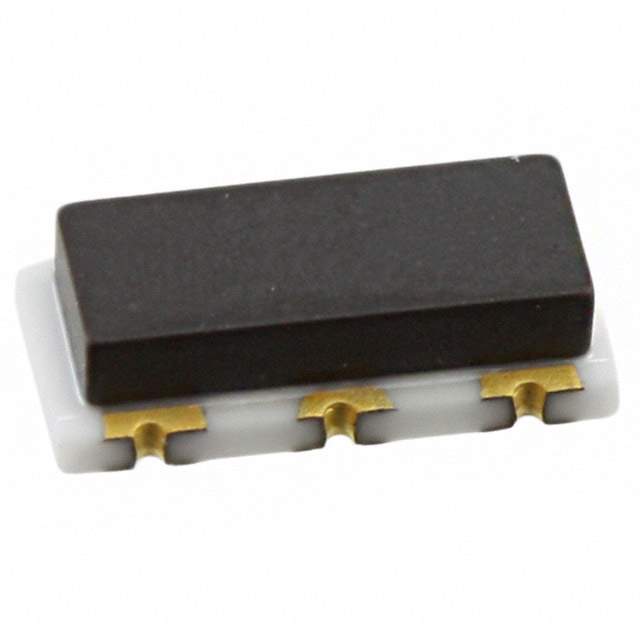

PBRC20.00HR50X000 Real Image
Same model may have multiple batches, images only for reference.

PBRC20.00HR50X000

Part No PBRC20.00HR50X000
Manufacturer AVX Corp/Kyocera Corp
Catalog Resonators
Datasheet
PBRC20.00HR50X000 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Resonators
Mfr KYOCERA AVX
Series PBRC-H, Kyocera
Package Tape & Reel
Product Status Obsolete
Type Ceramic
Frequency 20 MHz
Frequency Stability ±0.1%
Frequency Tolerance ±0.7%
Features Built in Capacitor
Capacitance 10 pF
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 3-SMD, Non-Standard
Dimension 0.291" L x 0.134" W (7.40mm x 3.40mm)
Height 0.079" (2.00mm)
Other Names PBRC2000HR50X000,478-PBRC20.00HR50X000TR,478-2114-1,478-2114-1,478-2114-2,478-2114-2,PBRC-20.00HR,478-2114-6,478-PBRC20.00HR50X000CT,478-2114-6,478-2114-6R,478-PBRC20.00HR50X000,478-PBRC20.00HR50X000
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1284884-PBRC20.00HR50X000
Ultra Librarian 3D Model Ultra Librarian PBRC20.00HR50X000 CAD Model

Description

The electronic component with part number 1284884-PBRC20.00HR50X000 is a ceramic resonator with a built-in capacitor.

  • Frequency: 20 MHz
  • Frequency Tolerance: ±0.7%
  • Frequency Stability: ±0.1%
  • Package: Non-standard 3-SMD
  • Operating Temperature Range: -40°C ~ 85°C
  • Manufacturer: KYOCERA AVX
  • Product: Obsolete
