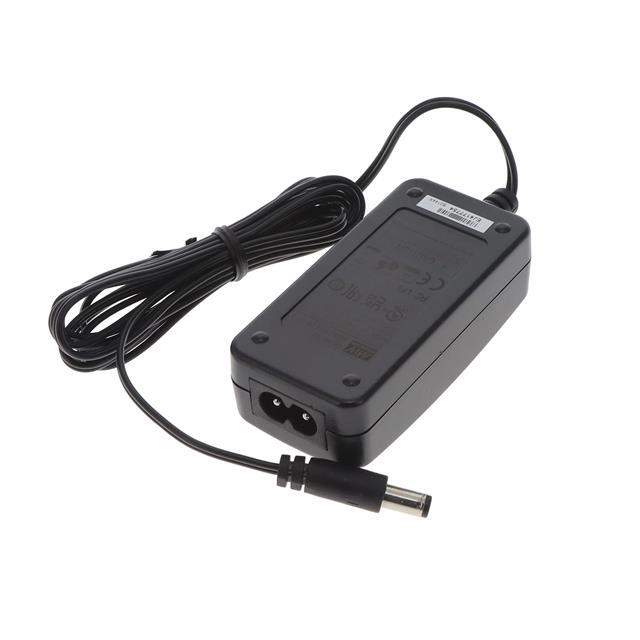

SGAS15B24-P1J Real Image
Same model may have multiple batches, images only for reference.

SGAS15B24-P1J

Part No SGAS15B24-P1J
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog AC DC Desktop, Wall Adapters
Description AC/DC DESKTOP ADAPTER 24V 15W / 24V 15 W AC/DC External Desktop (Class II) Adapter Cord Input
Datasheet
SGAS15B24-P1J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Desktop, Wall Adapters
Mfr MEAN WELL USA Inc.
Series SGAS15B (15W)
Package Box
Region Utilized International
Form Desktop (Class II)
Input Type Cord
Voltage - Input 90 ~ 264 VAC
Voltage - Output 24V
Current - Output (Max) 625mA
Power (Watts) 15 W
No Load Power Consumption 75mW
Polarization Positive Center
Applications ITE (Commercial)
Efficiency 86%
Temperature Range - Operating -20°C ~ 70°C
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Cord Length 70.9" (1.80m)
Input Connector IEC 320-C8
Dimension 3.15" L x 1.54" W x 1.09" H (80.0mm x 39.0mm x 27.7mm)
Approval Agency CB, CE, cULus, EAC, FCC, GS, TUV, UKCA
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names 1866-SGAS15B24-P1J
Standard Package 72
Win Source Part Number 1050943-SGAS15B24-P1J
Ultra Librarian 3D Model Ultra Librarian SGAS15B24-P1J CAD Model

Description

The SGAS15B24-P1J is a 15W AC/DC desktop power supply manufactured by MEAN WELL USA Inc.

  • Polarization: Positive Center
  • Output Voltage: 24V
  • Efficiency: 86 percent
  • No-Load Power Consumption: 75mW
  • Application: ITE (Commercial)
  • Approvals: CB, CE, cULus, EAC, FCC, GS, TUV, and UKCA
