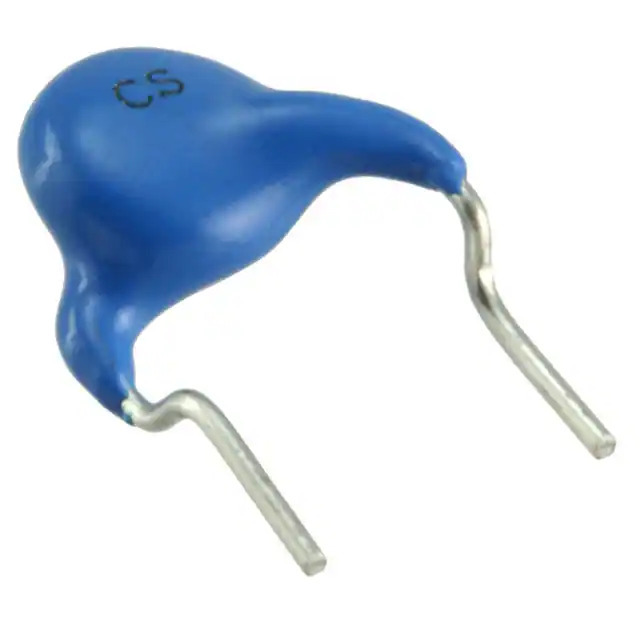

Same model may have multiple batches, images only for reference.
CS45-F2GA103M-VKA TDK Corporation
Same model may have multiple batches, images only for reference.

CS45-F2GA103M-VKA

Part No CS45-F2GA103M-VKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 10000PF 440VAC RADIAL / 10000 pF ±20% 440VAC Ceramic Capacitor F Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CS45
Product Status Active
Capacitance 10000 pF
Tolerance ±20%
Voltage - Rated 440VAC
Temperature Coefficient F
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage
Ratings X1, Y2
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.571" Dia (14.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360555-CS45-F2GA103M-VKA
Ultra Librarian 3D Model Ultra Librarian CS45-F2GA103M-VKA CAD Model

Description

The CS45 series is a high voltage ceramic capacitor with a capacitance of 10000 pF and a voltage rating of 440VAC manufactured by TDK Corporation.

  • Applications: Safety
  • Tolerance: ±20%
  • Rating: X1 and Y2
  • Package / Case: Radial, Disc
  • Mounting Type: Through Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Size / Dimension: 0.571" Dia (14.50mm)
  • Temperature Coefficient: F
  • Status: Active
