Same model may have multiple batches, images only for reference.

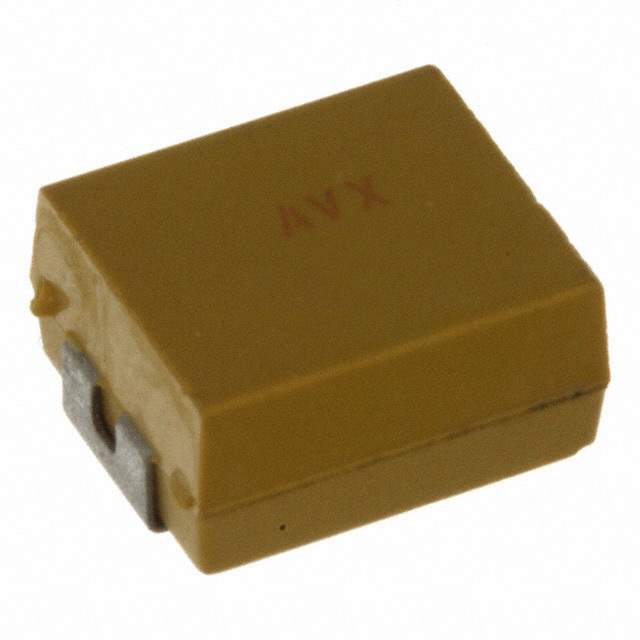

NOSV687M004R0075 Real Image
Same model may have multiple batches, images only for reference.

NOSV687M004R0075

Part No NOSV687M004R0075
Manufacturer AVX Corp/Kyocera Corp
Catalog Niobium Oxide Capacitors
Description CAP NIOB OXIDE 680UF 20% 4V 2924 / 680 µF Niobium Oxide Capacitor 4 V 2924 (7361 Metric) 75 mOhms
Datasheet
NOSV687M004R0075 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Niobium Oxide Capacitors
Mfr KYOCERA AVX
Series OxiCap® NOS
Package Tape & Reel (TR)
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 4 V
ESR (Equivalent Series Resistance) 75 mOhms
Current - Leakage 54.4 µA
Dissipation Factor 14%
Mounting SMD (SMT)
Package / Case 2924 (7361 Metric)
Manufacturer Size Code V
Height - Seated (Max) 0.148" (3.75mm)
Features Low ESR
Temperature Range - Operating -55°C ~ 125°C
Supplier Device Package 2924 (7361 Metric)
Dimension 0.287" L x 0.240" W (7.30mm x 6.10mm)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Other Names 478-3242-1,478-3242-2,478-3242-6
Standard Package 400
Win Source Part Number 1082606-NOSV687M004R0075
Ultra Librarian 3D Model Ultra Librarian NOSV687M004R0075 CAD Model

Description

The KYOCERA AVX OxiCap® NOS series is a molded niobium oxide capacitor with a capacitance of 680 µF and a tolerance of ±20%.

  • Series: OxiCap® NOS
  • Component: Molded niobium oxide capacitor
  • Capacitance: 680 µF
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 75 mOhms
  • Mounting Type: SMD (SMT)
  • Package Type: Tape and Reel
  • Height: 0.148" (3.75mm)
  • Voltage Rating: 4 V
  • Lifetime: Not specified
  • Temperature Range: -55°C ~ 125°C
  • Package/Case Size: 2924 (7361 Metric) with a dimension of 0.287" L x 0.240" W (7.30mm x 6.10mm)
  • Capacitor Size: V-sized
