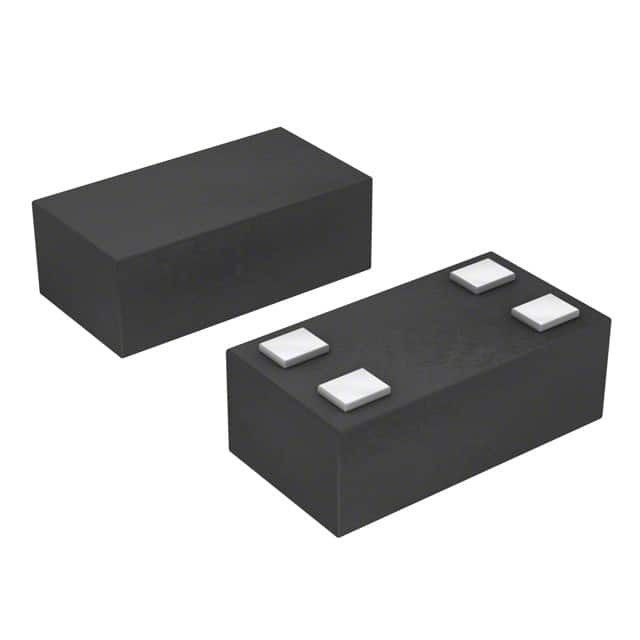

Same model may have multiple batches, images only for reference.
CP0603A1880MNTR
Same model may have multiple batches, images only for reference.

CP0603A1880MNTR

Part No CP0603A1880MNTR
Manufacturer AVX Corp/Kyocera Corp
Catalog RF Directional Coupler
Description RF DIR COUPLER 1.85-1.91GHZ 0603 / RF Directional Coupler PCS 1.85GHz ~ 1.91GHz 17.8dB 3W 0603 (1608 Metric)
Datasheet
CP0603A1880MNTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr AVX Corp/Kyocera Corp
Package Tape & Reel
Product Status Active
Coupler Type Standard
Frequency 1.85GHz ~ 1.91GHz
Coupling Factor 17.8dB
Applications PCS
Insertion Loss 0.25dB
Power - Max 3W
Isolation -37dB
Return Loss 26dB
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 867067-CP0603A1880MNTR
Ultra Librarian 3D Model Ultra Librarian CP0603A1880MNTR CAD Model

Description

The 867067-CP0603A1880MNTR is an RF Directional Coupler designed for use in PCS applications.

  • Frequency Range: 1.85GHz to 1.91GHz
  • Coupling Factor: 17.8dB
  • Coupler Type: Standard
  • Insertion Loss: 0.25dB
  • Isolation: -37dB
  • Package: 0603 (1608 Metric)
  • Package Type: Tape & Reel
  • Standard Package Size: 3,000 pieces
  • Maximum Power Handling: 3W
  • Return Loss: 26dB
  • Supplier Device Package: 0603
  • Manufacturer: AVX Corp/Kyocera Corp
  • Status: Active
