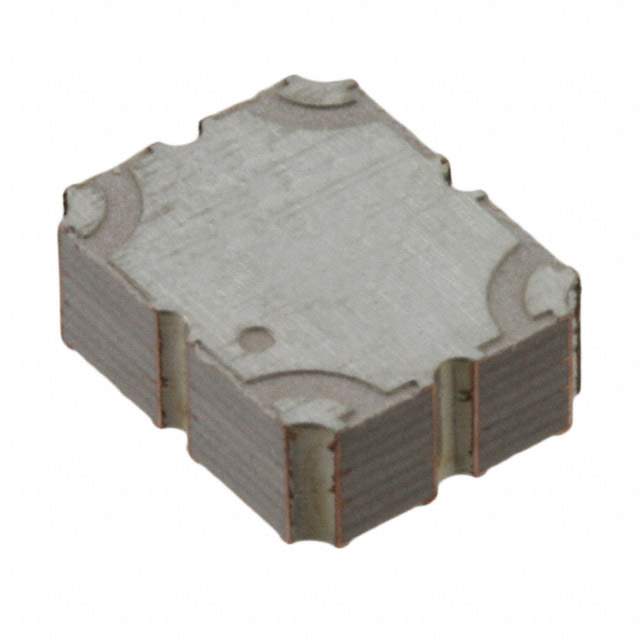

X3C19P2-30S Real Image
Same model may have multiple batches, images only for reference.

X3C19P2-30S

Part No X3C19P2-30S
Manufacturer Anaren
Catalog RF Directional Coupler
Description COUPLER 90DEG 1.4GHZ-2.7GHZ 30DB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 1.4GHz to 2.7GHz
Coupling Factor 30.4dB
Applications DCS, LTE, PCS, WCDMA
Insertion Loss 0.1dB
Maximum Power Dissipation 200W
Return Loss 24.9dB
Case / Package SMD
Win Source Part Number 043759-X3C19P2-30S
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian X3C19P2-30S CAD Model

Description

The Anaren 043759-X3C19P2-30S is a surface mount packaged coupler component designed for DCS, LTE, PCS, and WCDMA applications.

  • Popularity: High
  • Supply and Demand Status: Balanced
  • Coupling Factor: 30.4dB
  • Insertion Loss: 0.1dB
  • Return Loss: 24.9dB
  • Maximum Power Dissipation: 200W
  • Usage: Common-used part
