Same model may have multiple batches, images only for reference.

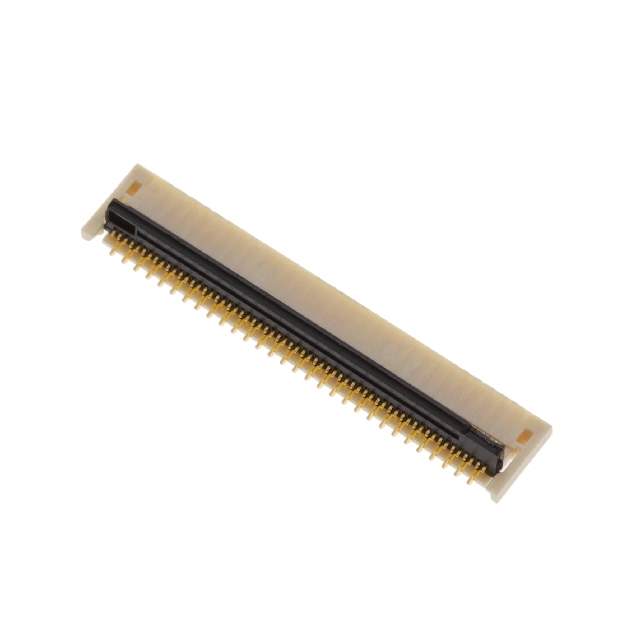

046293061004829+ Real Image
Same model may have multiple batches, images only for reference.

046293061004829+

Part No 046293061004829+
Manufacturer AVX Corp/Kyocera Corp
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.3MM PITCH - 61 POS - RT ANGLE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Kyocera International Inc. Electronic Components
Packaging Reel
Flat Flex Type FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 61
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.15mm
Height Above Board 0.033" (0.84mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Plastic
Features Low Insertion Force (LIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Current Rating (Amps) 0.2A
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800621-046293061004829+
Ultra Librarian 3D Model Ultra Librarian 046293061004829+ CAD Model

Description

The KYOCERA International Inc. Electronic Components 800621-046293061004829+ is a low insertion force (LIF) flat flex type FPC connector with 61 positions and a pitch of 0.012" (0.30mm).

  • Positions: 61
  • Pitch: 0.012" (0.30mm)
  • Connector/Contact Type: Contacts, Top and Bottom
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Height Above Board: 0.033" (0.84mm)
  • Housing Material: Plastic
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Surface Mount, Right Angle
  • Manufacturer Pack Quantity: 2,000
  • Current Rating: 0.2A
