Same model may have multiple batches, images only for reference.

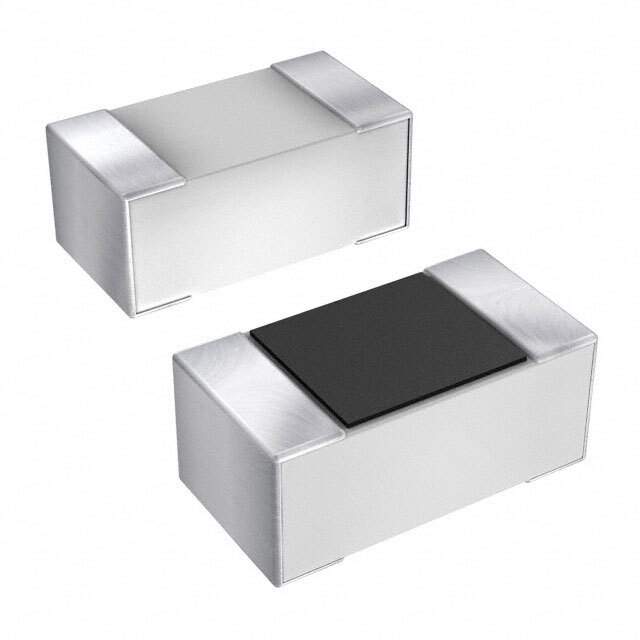

04023J3R9BBSTR Real Image
Same model may have multiple batches, images only for reference.

04023J3R9BBSTR

Part No 04023J3R9BBSTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Thin Film Capacitors
Description CAP THIN FILM 3.9PF 25V 0402 / 3.9 pF Thin Film Capacitor 25 V 0402 (1005 Metric)
Datasheet
04023J3R9BBSTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Thin Film Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Capacitance 3.9 pF
Tolerance ±0.1pF
Voltage - Rated 25 V
Mounting Surface Mount
Case / Package 0402 (1005 Metric)
Temperature Range - Operating -55°C ~ 125°C
Features RF, High Q, Low Loss
Size / Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max) 0.020" (0.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 04023J3R9BBSTR/5K,04023J3R9BBSTR\\5K,478-4424-2,478-4424-1,04023J3R9BBSTR-ND,478-4424-6
Standard Package 5,000
Win Source Part Number 1330677-04023J3R9BBSTR
Ultra Librarian 3D Model Ultra Librarian 04023J3R9BBSTR CAD Model

Description

The KYOCERA AVX 1330677-04023J3R9BBSTR thin film capacitor is designed for RF applications.

  • Manufacturer: KYOCERA AVX
  • Application: RF
  • Capacitance: 3.9 pF
  • Voltage Rating: 25V
  • Tolerance: ±0.1pF
  • Operating Temperature: -55°C to 125°C
  • Package: 0402 (1005 Metric)
  • Packaging: Reel - TR
  • Height (Seated): N/A
  • Thickness: 0.020" (0.50mm)
  • Mounting Type: Surface Mount
  • Dimension: 0.039" L x 0.022" W (1.00mm x 0.55mm)
  • ECCN: EAR99
  • Other Names: 04023J3R9BBSTR/5K, 04023J3R9BBSTR\5K, 478-4424-2, 478-4424-1, 04023J3R9BBSTR-ND, 478-4424-6
  • ROHS3 Compliant: Yes
