Same model may have multiple batches, images only for reference.

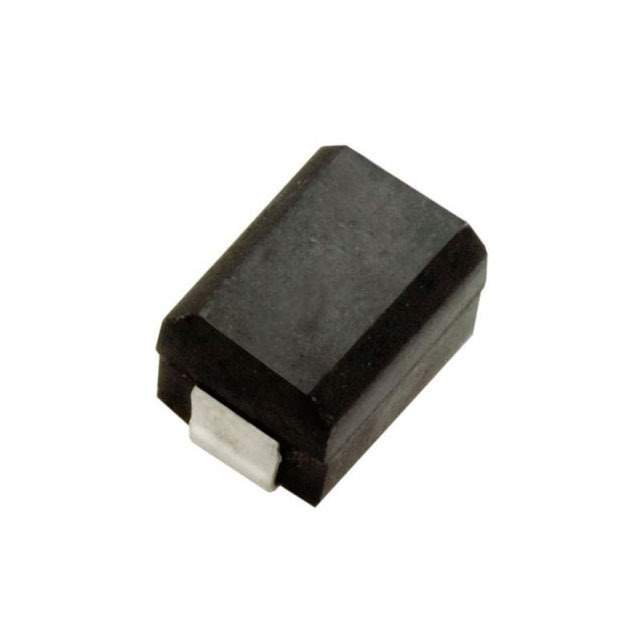

S1812R-184K Real Image
Same model may have multiple batches, images only for reference.

S1812R-184K

Part No S1812R-184K
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 180UH 153MA 8.5 OHM / Shielded Surface Mount Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer API Delevan Inc.
Packaging Reel
Material - Core Ferrite
Inductance 180μH
Tolerance ±10%
Current Rating (Amps) 153mA
Shielding Shielded
DC Resistance (DCR) 8.5Ohm Max
Q at Freq 40 at 790kHz
Frequency - Self Resonant 4.5MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 790kHz
Mounting Style SMD
Manufacturer Package 1812 (4532 Metric)
Supplier Device Package 1812
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Maximum) 0.134" (3.40mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801054-S1812R-184K
Ultra Librarian 3D Model Ultra Librarian S1812R-184K CAD Model

Description

The API Delevan Inc. S1812R-184K is a part.

  • Packaging: Reel
  • Shielded: Yes
  • Inductance: 180μH (±10%)
  • Material: Ferrite
  • Self-Resonant Frequency: 4.5MHz
  • DC Resistance (DCR): 8.5Ohm max
  • Supplier Device Package: 1812
  • Operating Temperature: -55°C to 125°C
  • Dimensions: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Win Source Part Number: 801054
  • Supply and Demand Status: Sufficient
