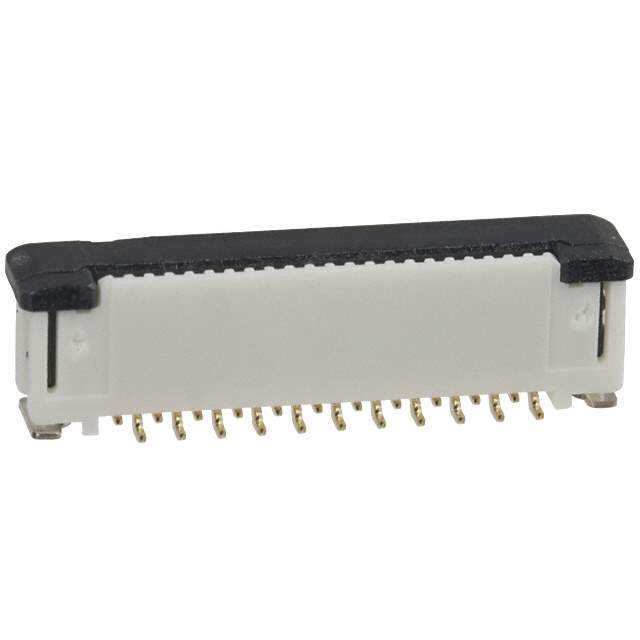

XF2J-2224-11A

Name: XF2J-2224-11A
Brand: Omron
SKU: 1340192
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XF2J-2224-11A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC VERT 22POS 0.5MM SMD / 22 Position FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Omron Electronics Inc-EMC Div
Series	XF2J
Package	Tape & Reel
Product Status	Obsolete
Flat Flex Type	FPC
Mounting Type	Surface Mount
Connector/Contact Type	Contacts, Vertical - 1 Sided
Number of Positions	22
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.163" (4.15mm)
Locking Feature	Slide Lock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Polyamide (PA46) , Nylon 4/6
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	5.90µin (0.150µm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	30
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	1340192-XF2J-2224-11A
Ultra Librarian 3D Model	Ultra Librarian XF2J-2224-11A CAD Model

Description

The Omron Electronics Inc-EMC Div XF2J-2224-11A is a connector assembly with 22 positions and a pitch of 0.020" (0.50mm).

Number of Positions: 22
Pitch: 0.020" (0.50mm)
Voltage Rating: 50V
Current Rating: 0.5A
Height Above Board: 0.163" (4.15mm)
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Vertical - 1 Sided
FFC, FCB Thickness: 0.30mm
Locking Type: Slide Lock
Housing Material: Polyamide (PA46), Nylon 4/6
Supply and Demand Status: Balance
Win Source Part Number: 1340192-XF2J-2224-11A
