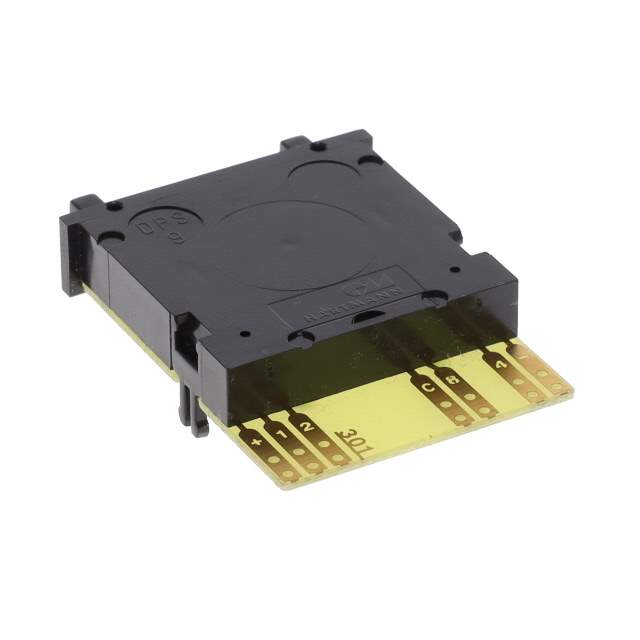

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Thumbwheel Switches
Mfr APEM Inc.
Series DPS9
Package Tray
Output Code Hexadecimal
Read Out 0 ~ 9, A ~ F
Number of Sections 1
Display Characters - Height 0.169" (4.30mm)
Actuator Type Pushwheel
Contact Rating @ Voltage 0.1A @ 40VAC/DC
Contact Material Copper Tin Alloy
Contact Finish Gold
Mounting Type Panel Mount, Snap-In
Termination Style Card Edge/Solder Pad
End Caps Sold Separately
Section Width 0.315" (8.00mm)
Temperature Range - Operating -20°C ~ 80°C
Depth Behind Flange 39.10mm
Housing Material Polyphenylene Oxide (PPO)
Color Black
Base Product Number DPS9301
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 679-4017,DPS9301AK2-ND
Standard Package 10
Win Source Part Number 1086052-DPS9301AK2
Ultra Librarian 3D Model Ultra Librarian DPS9301AK2 CAD Model

Description

The DPS9301AK2 is a pushwheel thumbwheel switch manufactured by APEM Inc.

  • Packaging: 10-piece tray
  • Termination Style: Card edge/solder pad
  • Contact Finish: Gold
  • Contact Material: Copper tin alloy
  • Housing Material: Polyphenylene oxide (PPO)
  • Readout Range: 0-9 and A-F
  • Display Character Height: 0.169 inches (4.30mm)
  • Depth Behind Flange: 39.10mm
  • Contact Rating: 0.1A @ 40VAC/DC
  • Panel Cutout Dimension: -
  • Mount Type: Panel mount and snap-in
  • Output Code: Hexadecimal
  • Operating Temperature: -20°C to 80°C
